TBC857A
TBC857A is PNP Small Signal Surface Mount Transistor manufactured by Galaxy Microelectronics.
- Part of the TBC856 comparator family.
- Part of the TBC856 comparator family.

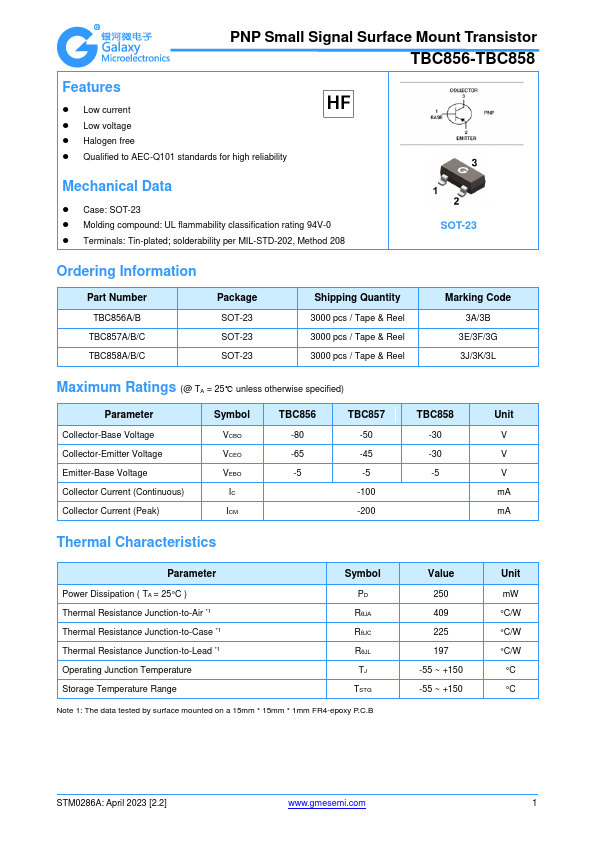

PNP Small Signal Surface Mount Transistor TBC856-TBC858
Features
- Low current
- Low voltage
- Halogen free
- Qualified to AEC-Q101 standards for high reliability
Mechanical Data
- Case: SOT-23
- Molding pound: UL flammability classification rating 94V-0
- Terminals: Tin-plated; solderability per MIL-STD-202, Method 208
SOT-23
Ordering Information
Part Number TBC856A/B TBC857A/B/C TBC858A/B/C
Package SOT-23 SOT-23 SOT-23
Shipping Quantity 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel
Marking Code 3A/3B
3E/3F/3G 3J/3K/3L
Maximum Ratings (@ TA = 25℃ unless otherwise specified)
Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage...
