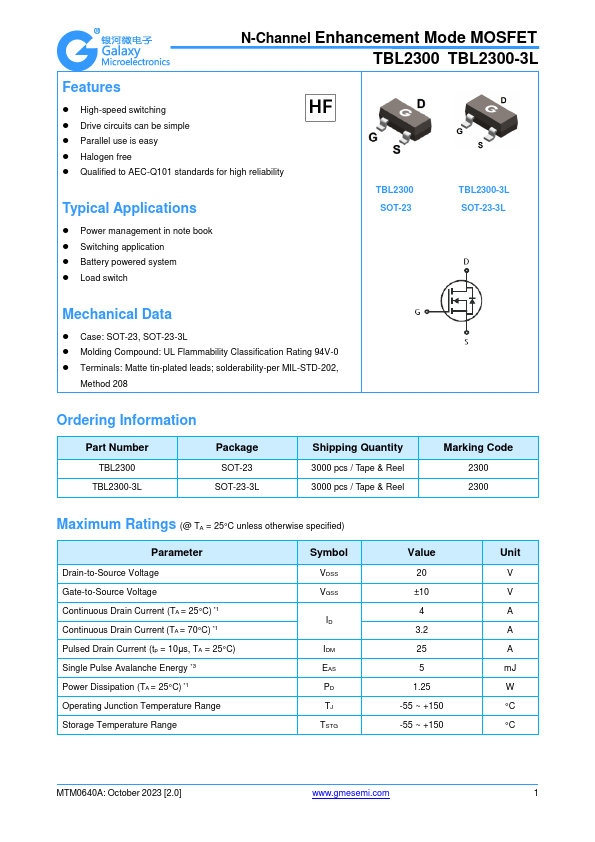

TBL2300-3L
Features
- High-speed switching
- Drive circuits can be simple
- Parallel use is easy
- Halogen free
- Qualified to AEC-Q101 standards for high reliability
Typical Applications
- Power management in note book
- Switching application
- Battery powered system
- Load switch
TBL2300 SOT-23
TBL2300-3L SOT-23-3L
Mechanical Data
- Case: SOT-23, SOT-23-3L
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202,
Method 208
Ordering Information
Part Number
TBL2300 TBL2300-3L
Package
SOT-23 SOT-23-3L
Shipping Quantity
3000 pcs / Tape & Reel 3000 pcs / Tape & Reel
Marking Code
2300 2300
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Parameter
Drain-to-Source Voltage Gate-to-Source Voltage Continuous Drain Current (TA = 25°C)
- 1 Continuous Drain Current (TA = 70°C)
- 1 Pulsed Drain Current (tp = 10μs, TA = 25°C) Single Pulse Avalanche Energy
- 3 Power Dissipation (TA = 25°C)
- 1 Operating Junction Temperature...
