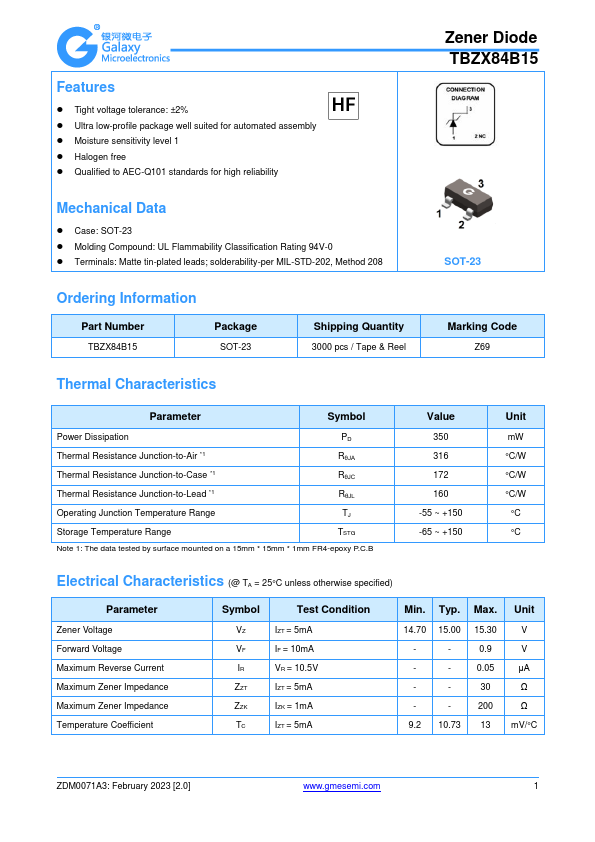

TBZX84B15
TBZX84B15 is Zener Diode manufactured by Galaxy Microelectronics.
Features
- Tight voltage tolerance: ±2%
- Ultra low-profile package well suited for automated assembly
- Moisture sensitivity level 1
- Halogen free
- Qualified to AEC-Q101 standards for high reliability
Zener Diode TBZX84B15
Mechanical Data

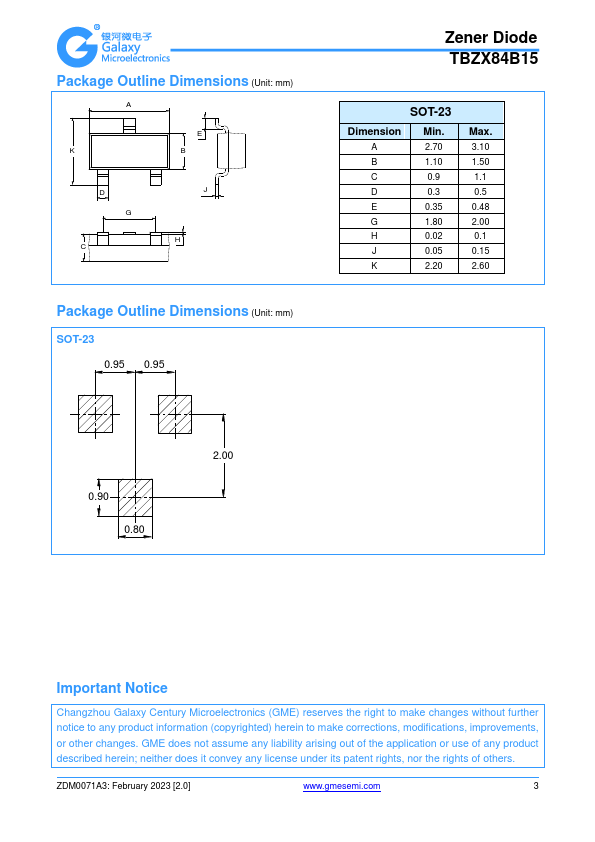

- Case: SOT-23
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208
SOT-23
Ordering Information
Part Number
Package
SOT-23
Shipping Quantity
3000 pcs / Tape & Reel
Marking Code
Z69
Thermal Characteristics
Parameter
Symbol
Power Dissipation
Thermal Resistance Junction-to-Air
- 1
RθJA
Thermal Resistance Junction-to-Case
-...
