TMBR160SH - Schottky Barrier Diode

Features

  • Low reverse current.
  • Low power loss.
  • High efficiency.
  • Low stored charge, majority carrier conduction.
  • Highly stable oxide passivated junction.
  • RoHS compliant with Halogen-free.
  • Qualified to AEC-Q101 Standards Schottky Barrier Diode TMBR160SH Mechanical Data.
  • Case: SOD-323.
  • Molding compound: UL flammability classification rating 94V-0.
  • Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 SOD-323 Ordering Information Part Number T.

📥 Download Datasheet

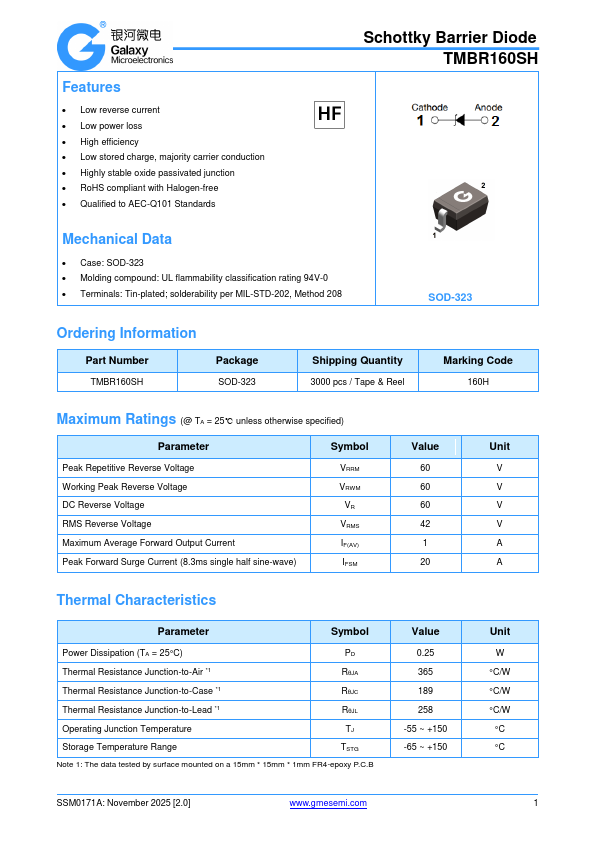

Datasheet preview – TMBR160SH

📁 Similar Datasheet

  • TMBR10100CT - Ultra Low VF Schottky Rectifier (Bruckewell)
  • TMBR20100CT - Dual Common-Cathode Ultra Low VF Schottky Rectifier (Bruckewell)
  • TMBR2080CT - Ultra Low VF Schottky Rectifier (Bruckewell)
  • TMBR30100CT - Dual Common-Cathode Ultra Low VF Schottky Rectifier (Bruckewell)
  • TMBR30120CT - Dual Common-Cathode Ultra Low VF Schottky Rectifier (Bruckewell)
  • TMBR30150CT - Dual Common-Cathode Ultra Low VF Schottky Rectifier (Bruckewell)
  • TMBR6S05 - Voltage 600V 0.5Amp Silicon Bridge Rectifiers (SeCoS Halbleitertechnologie)
  • TMBR6S05 - Silicon Bridge Rectifiers (Taiwan Semiconductor)
  • TMBR6S08 - Voltage 600V 0.8Amp Silicon Bridge Rectifiers (SeCoS Halbleitertechnologie)
  • TMBRF30150CT - Dual Common-Cathode Ultra Low VF Schottky Rectifier (Bruckewell)
Other Datasheets by GME

Full PDF Text Transcription

Click to expand full text
Features  Low reverse current  Low power loss  High efficiency  Low stored charge, majority carrier conduction  Highly stable oxide passivated junction  RoHS compliant with Halogen-free  Qualified to AEC-Q101 Standards Schottky Barrier Diode TMBR160SH Mechanical Data  Case: SOD-323  Molding compound: UL flammability classification rating 94V-0  Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 SOD-323 Ordering Information Part Number TMBR160SH Package SOD-323 Shipping Quantity 3000 pcs / Tape & Reel Marking Code 160H Maximum Ratings (@ TA = 25℃ unless otherwise specified) Parameter Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Reverse Voltage RMS Reverse Voltage Maximum Average Forward Output Current Peak Forward Surge Current (8.
