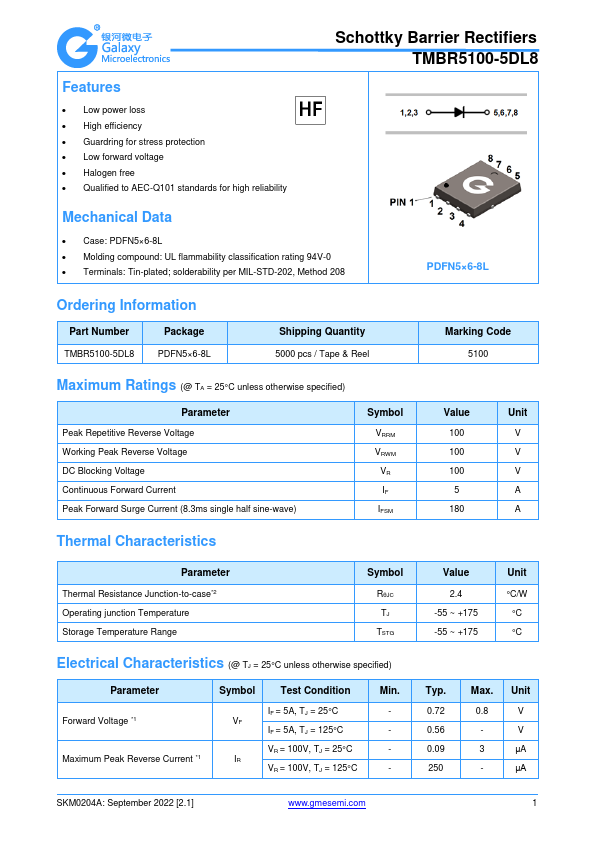

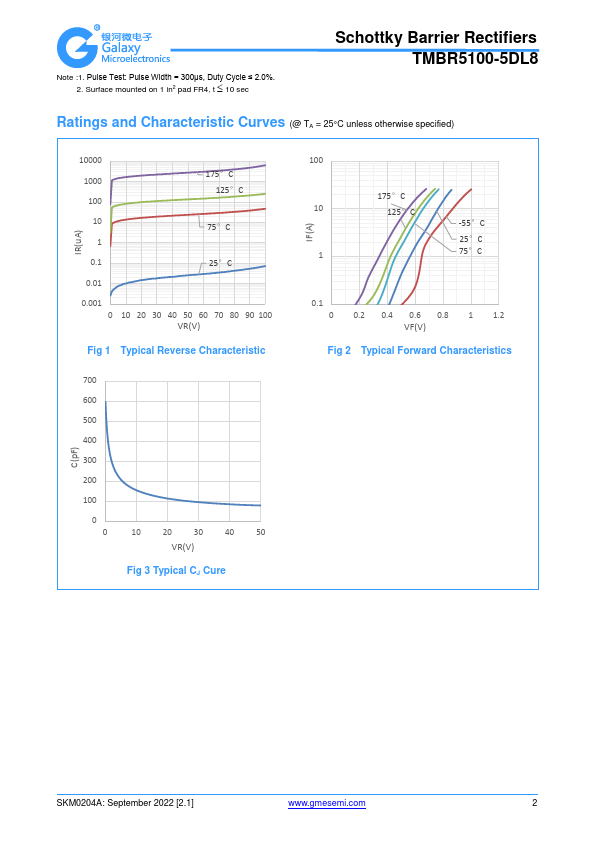

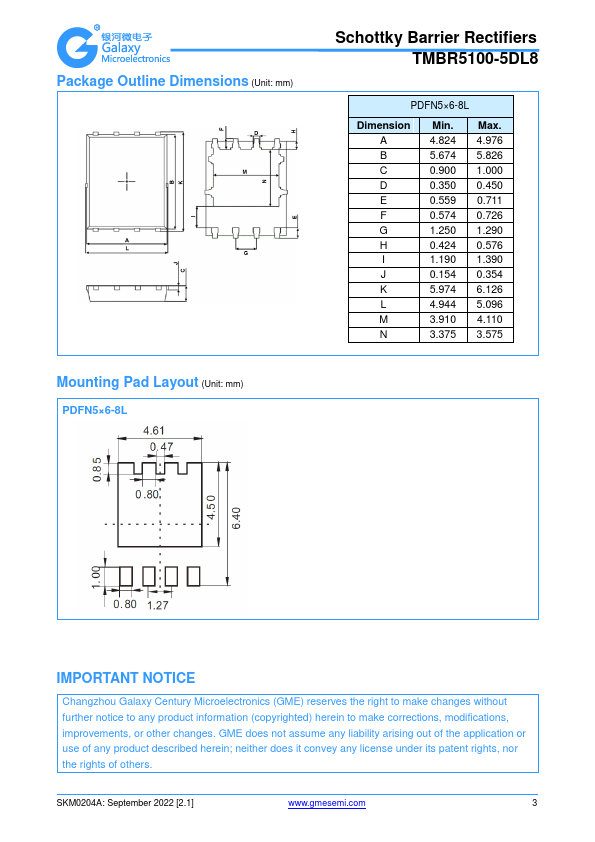

Features - Low power loss - High efficiency - Guardring for stress protection - Low forward voltage - Halogen free - Qualified to AEC-Q101 standards for high reliability Schottky Barrier Rectifiers TMBR5100-5DL8 Mechanical Data - Case: PDFN5×6-8L - Molding pound: UL flammability classification rating 94V-0 - Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 PDFN5×6-8L Ordering Information Part Number TMBR5100-5DL8 Package PDFN5×6-8L Shipping Quantity 5000 pcs / Tape & Reel Marking Code 5100 Maximum Ratings (@ TA = 25°C unless otherwise specified) Parameter Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Continuous Forward Current Peak Forward Surge Current (8.3ms single half sine-wave) Symbol VRRM VRWM VR IF IFSM Thermal Characteristics Value 100 100 100 5 180 Unit V V V A A Parameter Thermal Resistance Junction-to-case- 2 Operating junction Temperature Storage Temperature Range Symbol RθJC TJ TSTG Value 2.4 -55 ~ +175 -55 ~ +175 Unit °C/W °C °C Electrical Characteristics (@ TJ = 25°C unless otherwise specified) Parameter Forward Voltage - 1 Maximum Peak Reverse Current - 1 Symbol Test Condition IF = 5A, TJ = 25°C VF IF = 5A, TJ = 125°C VR = 100V, TJ = 25°C IR VR = 100V, TJ =...
