BAV70 - Dual Switching Diode

Download the BAV70 datasheet PDF. This datasheet also covers the BAV70-GOOD variant, as both devices belong to the same dual switching diode family and are provided as variant models within a single manufacturer datasheet.

Features

  • High Switching Speed: trr ≤ 4 ns.
  • Low Leakage Current.
  • Small SMD Plastic Packages.
  • Lead Free By Design BAV70 Dual Switching Diode.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BAV70-GOOD-ARK.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number BAV70
Manufacturer GOOD-ARK
File Size 471.08 KB
Description Dual Switching Diode
Datasheet download datasheet BAV70 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BAV70 SMALL SIGNAL DIODE EIC
BAV70 Diodes Multicomp
BAV70 High-speed switching diodes NXP
BAV70 Small Signal Switching Diode Vishay Telefunken
BAV70 Small Signal Diode Fairchild Semiconductor

Other Datasheets by GOOD-ARK

Part Number Description
BAV100 Fast Switching Diode
BAV101 Fast Switching Diode
BAV102 Fast Switching Diode
BAV103 Fast Switching Diode
BAV19 (BAV19 - BAV21) Small-Signal Diode

Full PDF Text Transcription

Click to expand full text

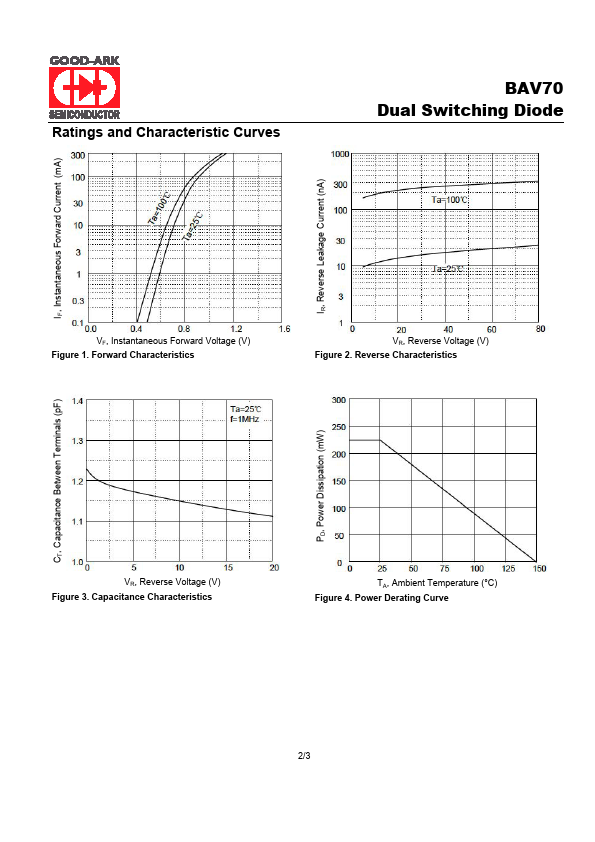

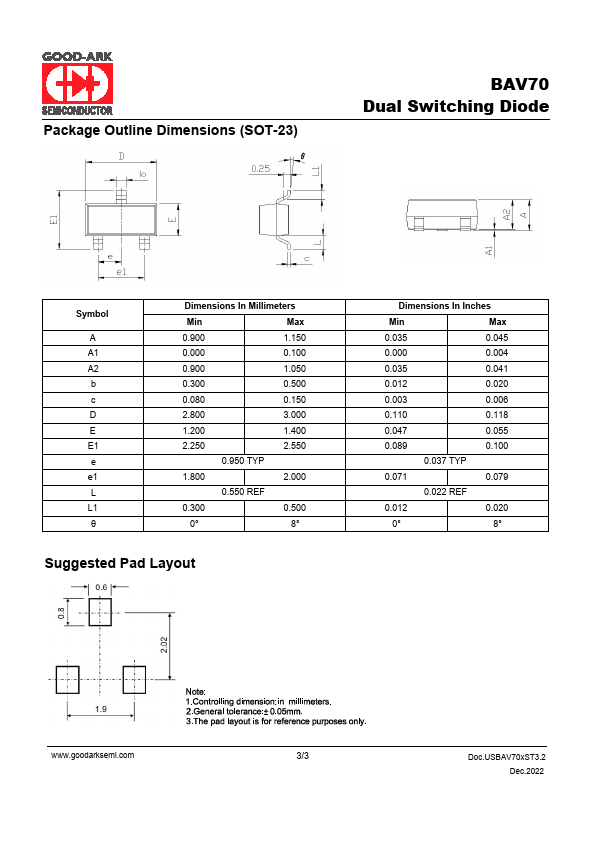

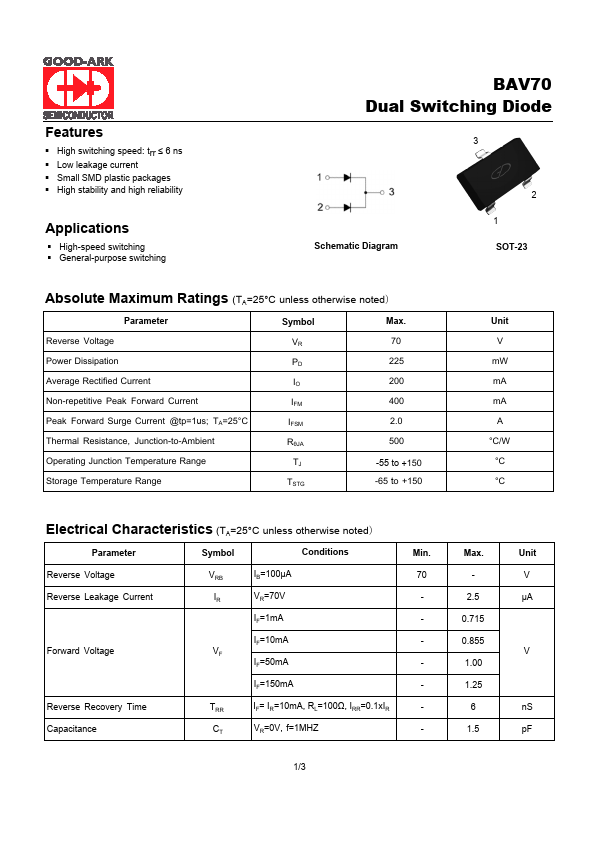

Features ■ High Switching Speed: trr ≤ 4 ns ■ Low Leakage Current ■ Small SMD Plastic Packages ■ Lead Free By Design BAV70 Dual Switching Diode Applications ■ High-Speed Switching ■ General-Purpose Switching Absolute Maximum Ratings (TA=25°C unless otherwise noted） Parameter Repetitive Peak Reverse Voltage Average Forward Current Non-Repetitive Peak at t=1.0s Forward Surge Current at t=1.0ms Power Dissipation Thermal Resistance From Junction to Ambient Junction Temperature Storage Temperature Range Symbol VRRM IF(AV) IFSM Pd RθJA TJ TJ, TSTG Value 70 0.
