BAV70-Q1

Manufacturer: Formosa MS

BAV70-Q1 datasheet by Formosa MS.

This datasheet includes multiple variants, all published together in a single manufacturer document.

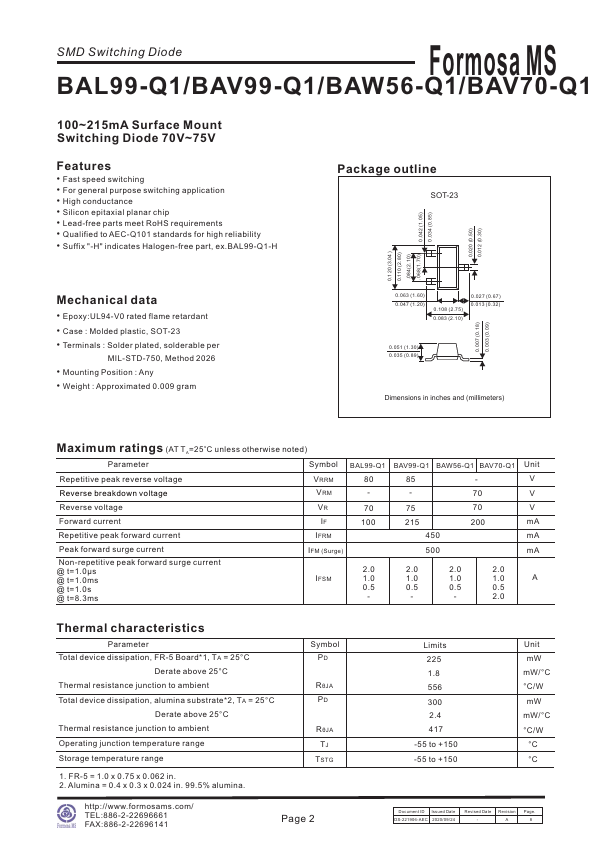

BAV70-Q1 datasheet preview

BAV70-Q1 Datasheet Details

Part number BAV70-Q1
Datasheet BAV70-Q1 BAV99-Q1 Datasheet (PDF)
File Size 106.51 KB
Manufacturer Formosa MS
Description SMD Switching Diode

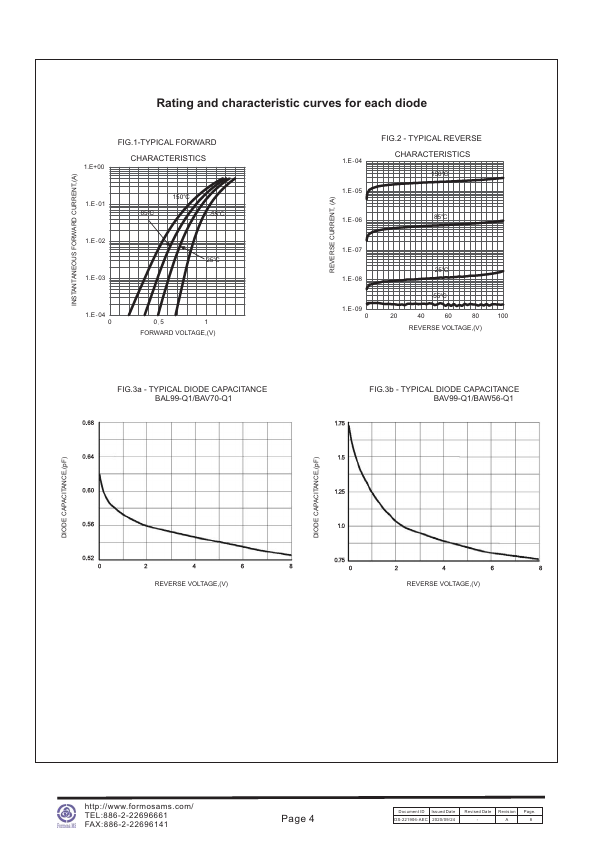

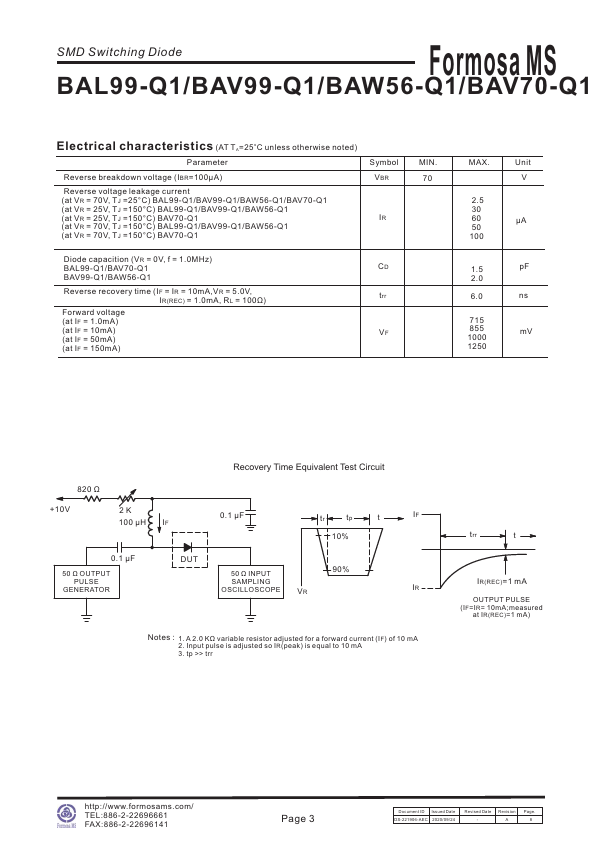

BAV70-Q1 page 2 BAV70-Q1 page 3

BAV70-Q1 Overview

SMD Switching Diode Formosa MS BAL99-Q1/BAV99-Q1/BAW56-Q1/BAV70-Q1 100~215mA Surface Mount Switching Diode 70V~75V.

BAV70-Q1 Key Features

  • Fast speed switching
  • For general purpose switching application
  • High conductance
  • Silicon epitaxial planar chip
  • Lead-free parts meet RoHS requirements
  • Qualified to AEC-Q101 standards for high reliability
  • Suffix "-H" indicates Halogen-free part, ex.BAL99-Q1-H
  • Epoxy:UL94-V0 rated flame retardant
  • Case : Molded plastic, SOT-23
  • Mounting Position : Any
