BAV70
BAV70 is Switching Diodes manufactured by Kexin Semiconductor.
Features

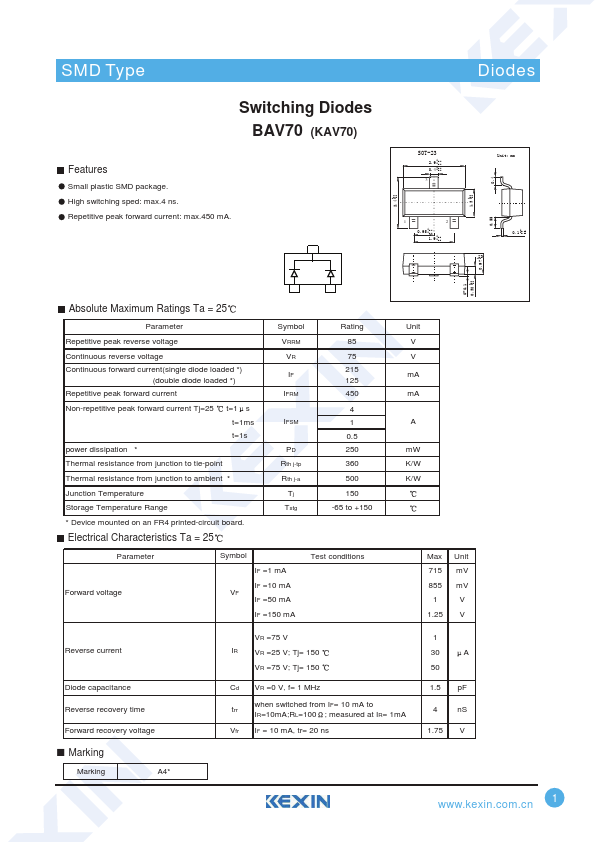

Small plastic SMD package. High switching sped: max.4 ns. Repetitive peak forward current: max.450 m A.
+0.1 2.4 -0.1
Diodes
SOT-23
2.9 +0.1 -0.1
0.4 +0.1 -0.1
0.95 +0.1 -0.1 1.9 +0.1 -0.1
+0.1 1.3 -0.1
Unit: mm 0.1 +0.05
-0.01
+0.1 0.97 -0.1
0-0.1 +0.1 0.38
-0.1
Absolute Maximum Ratings Ta = 25
Parameter
Repetitive peak reverse voltage
Continuous reverse voltage
Continuous forward current(single diode loaded
- ) ---------------------------------(double diode loaded
- )
Repetitive peak forward current
Non-repetitive peak forward current Tj=25 t=1 s t=1ms t=1s power dissipation
- Thermal resistance from junction to tie-point
Thermal resistance from junction to ambient
- Junction Temperature
Storage Temperature Range
- Device mounted on an FR4 printed-circuit board.
Electrical Characteristics Ta = 25
Symbol VRRM
VR IF IFRM
IFSM
PD Rth j-tp Rth j-a
Tj Tstg
Rating 85 75 215 125...
