BAV70 - Small Signal Switching Diode

Vishay

Key Features

Silicon Epitaxial Planar Diode.
Fast switching dual diode with common cathode.
AEC-Q101 qualified.
Base P/N-E3 - RoHS-compliant, commercial grade.
Base P/N-HE3 - RoHS-compliant, AEC-Q101 qualified.
Material categorization: For definitions of compliance please see www. vishay. com/doc?99912      PARTS TABLE PART BAV70.

BAV70 small signal switching diode by Vishay - Datasheet Preview

Datasheet Details

Part number	BAV70
Manufacturer	Vishay
File Size	94.35 KB
Description	Small Signal Switching Diode
Datasheet	BAV70 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
BAV70	SMALL SIGNAL DIODE	EIC
BAV70	Diodes	Multicomp
BAV70	High-speed switching diodes	NXP
BAV70	Small Signal Diode	Fairchild Semiconductor
BAV70	SMD Small Signal Diodes	Diotec

Other Datasheets by Vishay

Part Number	Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

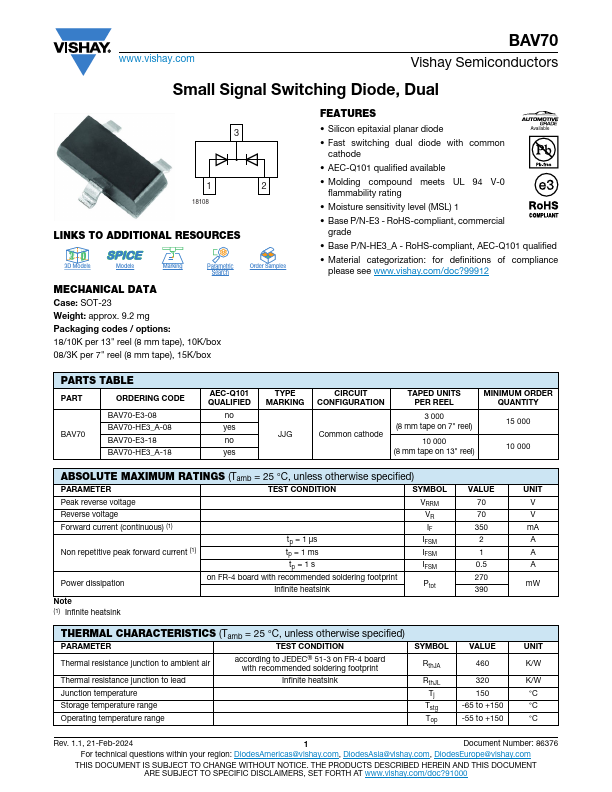

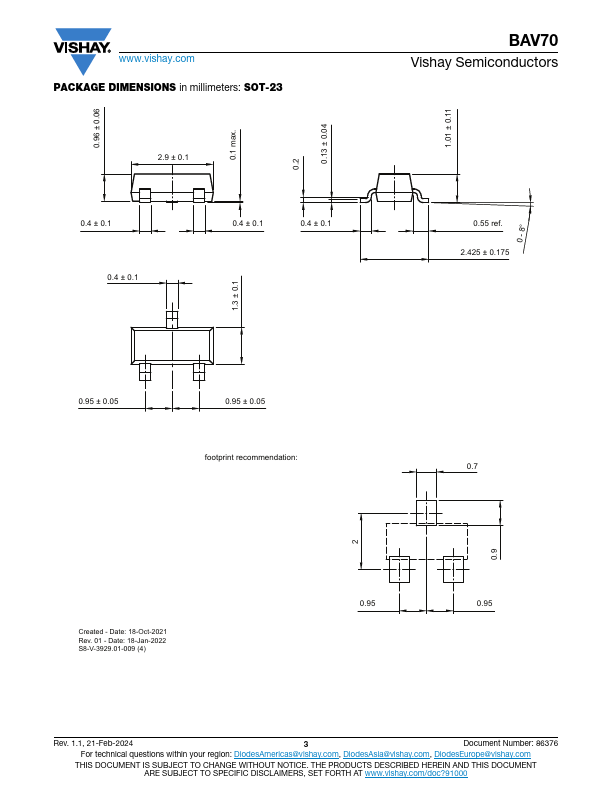

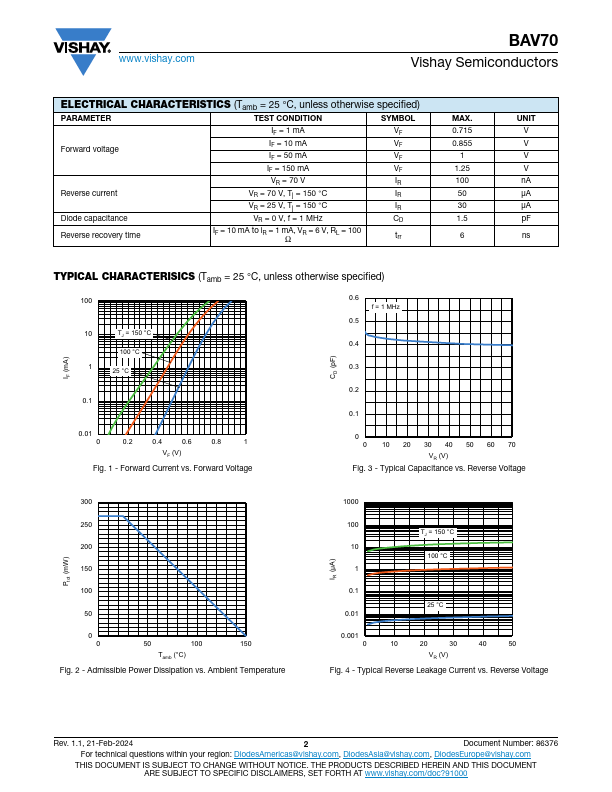

www.vishay.com BAV70 Vishay Semiconductors Small Signal Switching Diode, Dual 3 1 18108 MECHANICAL DATA Case: SOT-23 Weight: approx. 8.8 mg Packaging codes/options: 18/10K per 13" reel (8 mm tape), 10K/box 08/3K per 7" reel (8 mm tape), 15K/box 2 FEATURES • Silicon Epitaxial Planar Diode • Fast switching dual diode with common cathode • AEC-Q101 qualified • Base P/N-E3 - RoHS-compliant, commercial grade • Base P/N-HE3 - RoHS-compliant, AEC-Q101 qualified • Material categorization: For definitions of compliance please see www.vishay.
