BAV70T Datasheet

Manufacturer: Formosa MS

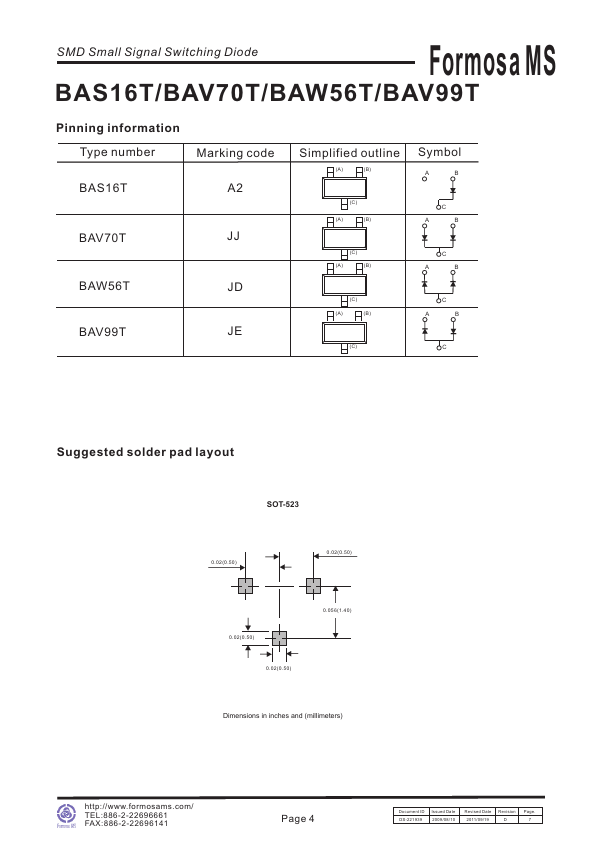

BAV70T datasheet preview

Datasheet Details

Part number	BAV70T
Datasheet	BAV70T-FormosaMS.pdf
File Size	132.12 KB
Manufacturer	Formosa MS
Description	SMD Small Signal Switching Diode

BAV70T Overview

SMD Small Signal Switching Diode Formosa MS BAS16T/BAV70T/BAW56T/BAV99T 150mW Surface Mount Small Signal Switching Diode- 85V.

BAV70T Key Features

Fast speed switching
For general purpose switching application
High conductance
Silicon epitaxial planar chip
Lead-free parts meet RoHS requirments
Suffix "-H" indicates Halogen free parts, ex. BAS16T-H
Epoxy:UL94-V0 rated flame retardant
Case : Molded plastic, SOT-523
Mounting Position : Any
Weight : Approximated 0.003 gram
