BAV756DW Datasheet | Formosa MS

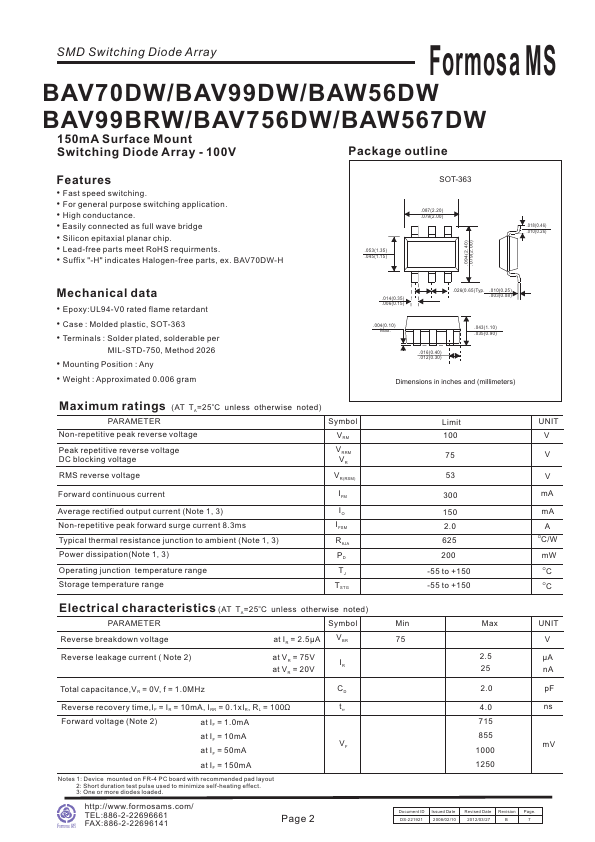

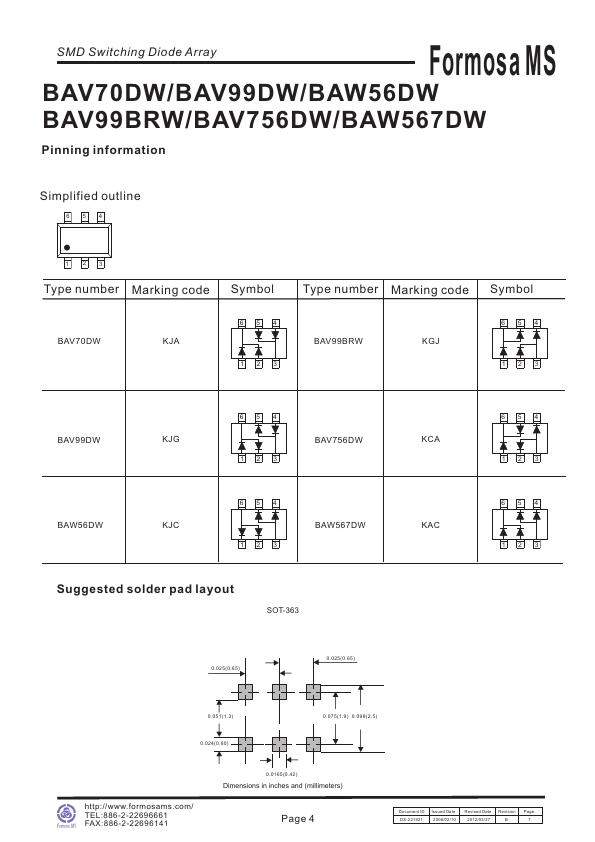

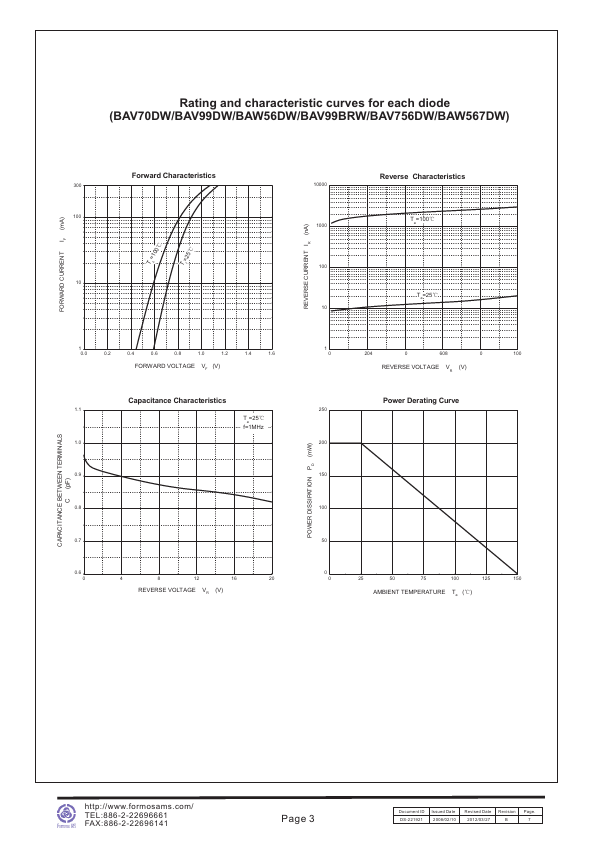

Features - Fast speed switching. - For general purpose switching application. - High conductance. - Easily connected as full wave bridge - Silicon epitaxial planar chip. - Lead-free parts meet Ro HS requirments. - Suffix "-H" indicates Halogen-free parts, ex. BAV70DW-H .053(1.35) .045(1.15) SOT-363 .087(2.20) .079(2.00) .018(0.46) .010(0.26) .094(2.40) .079(2.00) Mechanical data - Epoxy:UL94-V0 rated flame retardant - Case : Molded plastic, SOT-363 - Terminals : Solder plated, solderable per MIL-STD-750, Method 2026 - Mounting Position : Any - Weight : Approximated 0.006 gram .014(0.35) .006(0.15) .026(0.65)Typ. .010(0.25) .003(0.08) .004(0.10) Max. .016(0.40) .012(0.30) .043(1.10) .035(0.90) Dimensions in inches and (millimeters) Maximum ratings (AT TA=25o C unless otherwise noted) PARAMETER Symbol Non-repetitive peak reverse voltage Peak repetitive reverse voltage DC blocking voltage VRRM VR RMS reverse voltage VR(RSM) Forward continuous current Average rectified output current (Note 1, 3) Non-repetitive peak forward surge current...
