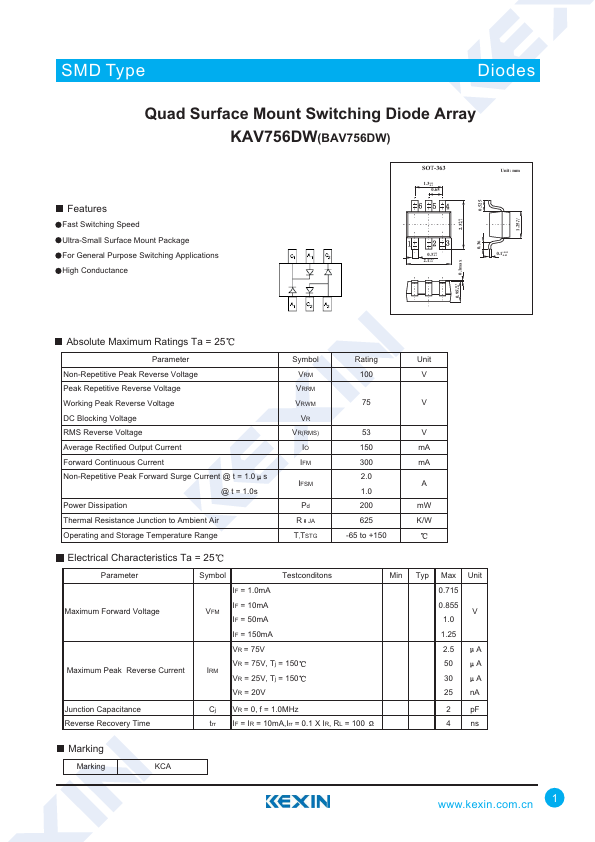

BAV756DW
BAV756DW is Quad Surface Mount Switching Diode Array manufactured by Kexin Semiconductor.
Features
Fast Switching Speed Ultra-Small Surface Mount Package For General Purpose Switching Applications High Conductance
0.1max
SOT-363
1.3+0.1 -0.1 0.65
Unit: mm
+0.15 2.3 -0.15
0.3+0.1 -0.1
2.1+0.1 -0.1
0.1+0.05 -0.02
+0.1 1.25 -0.1
+0.05 0.95 -0.05
Absolute Maximum Ratings Ta = 25
Parameter
Symbol
Rating
Unit
Non-Repetitive Peak Reverse Voltage
Peak Repetitive Reverse Voltage
VRRM
Working Peak Reverse Voltage
VRWM
DC Blocking Voltage
RMS Reverse Voltage
VR(RMS)
Average Rectified Output Current
150 m A
Forward Continuous Current
300 m A
Non-Repetitive Peak Forward Surge Current @ t = 1.0...
