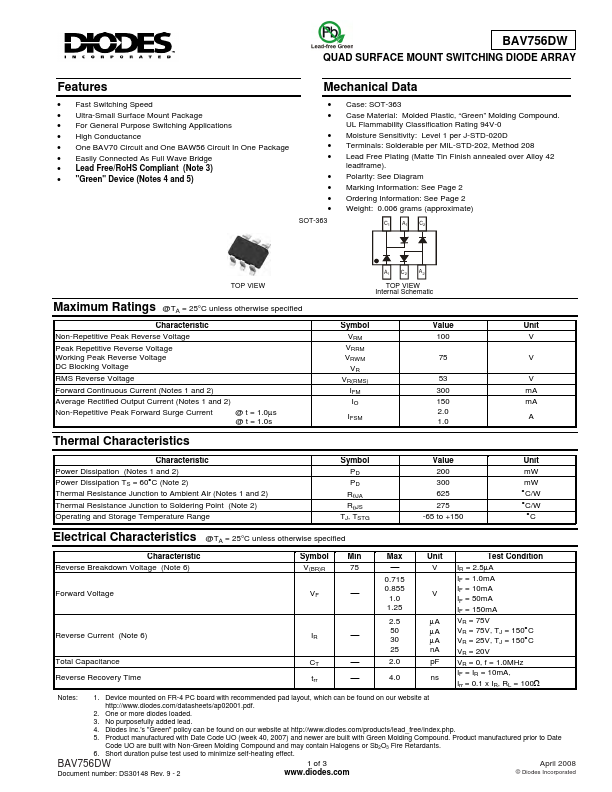

Features Mechanical Data - Fast Switching Speed - Ultra-Small Surface Mount Package - For General Purpose Switching Applications - High Conductance - One BAV70 Circuit and One BAW56 Circuit In One Package - Easily Connected As Full Wave Bridge - Lead Free/Ro HS pliant (Note 3) - "Green" Device (Notes 4 and 5) - Case: SOT-363 - Case Material: Molded Plastic, “Green” Molding pound. UL Flammability Classification Rating 94V-0 - Moisture Sensitivity: Level 1 per J-STD-020D - Terminals: Solderable per MIL-STD-202, Method 208 - Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe). - Polarity: See Diagram - Marking Information: See Page 2 - Ordering Information: See Page 2 - Weight: 0.006 grams (approximate) SOT-363 C1 A1 C2 TOP VIEW A1 C2 A2 TOP VIEW Internal Schematic Maximum Ratings @TA = 25°C unless otherwise specified Characteristic Symbol Value Unit Non-Repetitive Peak Reverse Voltage Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage VRRM VRWM...
