BAV70T - Dual Switching Diode

onsemi

Key Features

NSV Prefix for Automotive and Other.

BAV70T dual switching diode by onsemi - Datasheet Preview

Datasheet Details

Part number	BAV70T
Manufacturer	onsemi
File Size	60.61 KB
Description	Dual Switching Diode
Datasheet	BAV70T Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
BAV70T	High-speed switching diodes	NXP
BAV70T	Silicon Switching Diode	Infineon Technologies AG
BAV70T	SURFACE MOUNT FAST SWITCHING DIODE	WON-TOP
BAV70T	SWITCHING DIODE	Transys
BAV70T	SILICON EPITAXIAL PLANAR DIODE	KEC

Other Datasheets by onsemi

Part Number	Description
BAV70TT1	Dual Switching Diode
BAV70TT1G	Dual Switching Diode
BAV70DXV6	Monolithic Dual Switching Diode Common Cathode
BAV70L	Dual Switching Diode Common Cathode
BAV70LT1	Monolithic Dual Switching Diode Common Cathode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

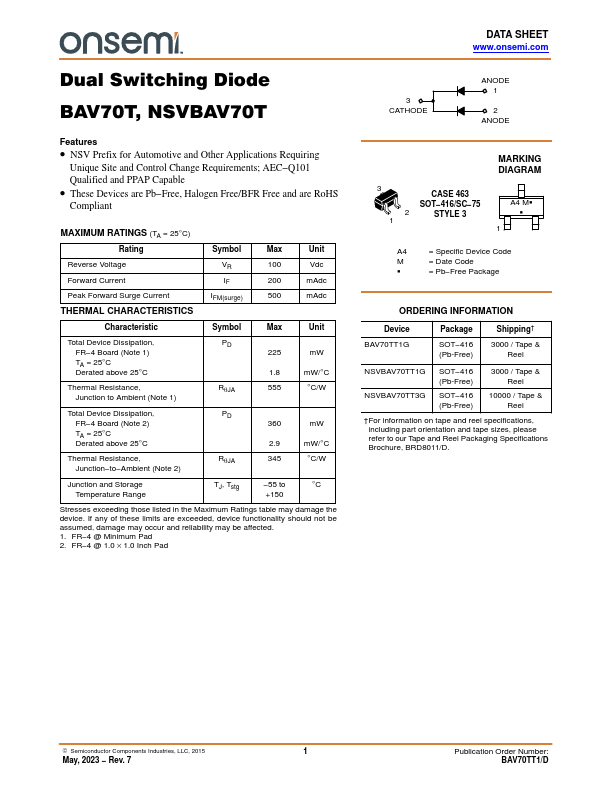

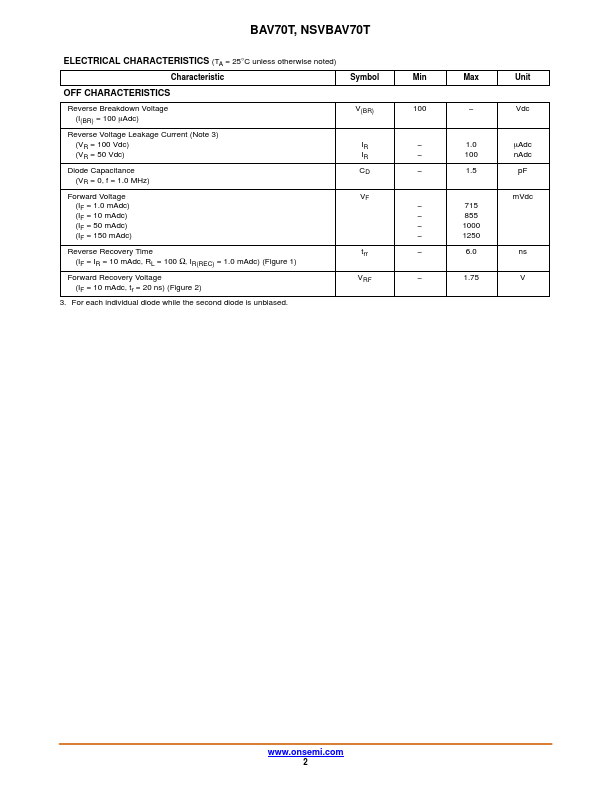

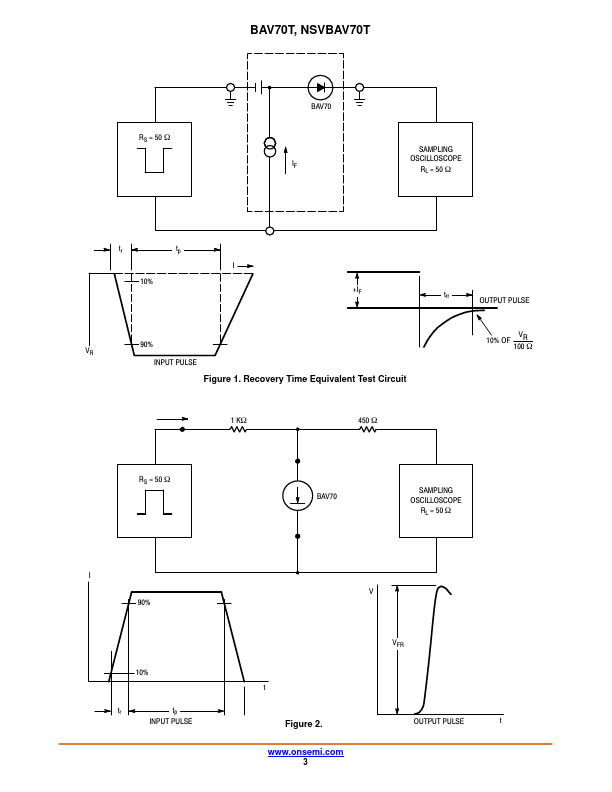

BAV70T, NSVBAV70T Dual Switching Diode Features • NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS (TA = 25°C) Rating Symbol Max Unit Reverse Voltage VR 100 Vdc Forward Current IF 200 mAdc Peak Forward Surge Current IFM(surge) 500 mAdc THERMAL CHARACTERISTICS Characteristic Symbol Max Unit Total Device Dissipation, FR−4 Board (Note 1) TA = 25°C Derated above 25°C PD 225 mW 1.8 mW/°C Thermal Resistance, Junction to Ambient (Note 1) RqJA 555 °C/W Total Device Dissipation, FR−4 Board (Note 2) TA = 25°C Derated above 25°C PD 360 mW 2.
