BAV70T
BAV70T is Surface Mount Fast Switching Doide manufactured by Semiware Semiconductor.
Features

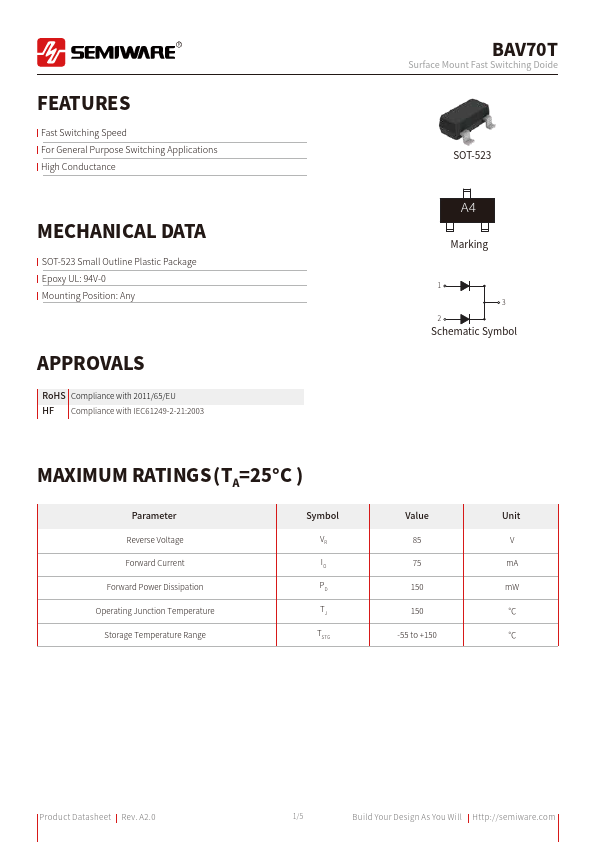

Fast Switching Speed For General Purpose Switching Applications High Conductance
MECHANICAL DATA
SOT-523 Small Outline Plastic Package Epoxy UL: 94V-0 Mounting Position: Any
APPROVALS
RoHS pliance with 2011/65/EU HF pliance with IEC61249-2-21:2003
MAXIMUM RATINGS (TA=25°C )
Parameter Reverse Voltage Forward Current Forward Power Dissipation Operating Junction Temperature Storage Temperature Range
Symbol VR IO PD TJ TSTG
Surface Mount Fast Switching Doide
SOT-523
A4
Marking
1 3
Schematic Symbol
Value 85 75 150 150
-55 to +150
Unit V mA mW ℃ ℃
Product Datasheet Rev. A2.0
1/5
