BAV70W Datasheet | Semiware Semiconductor

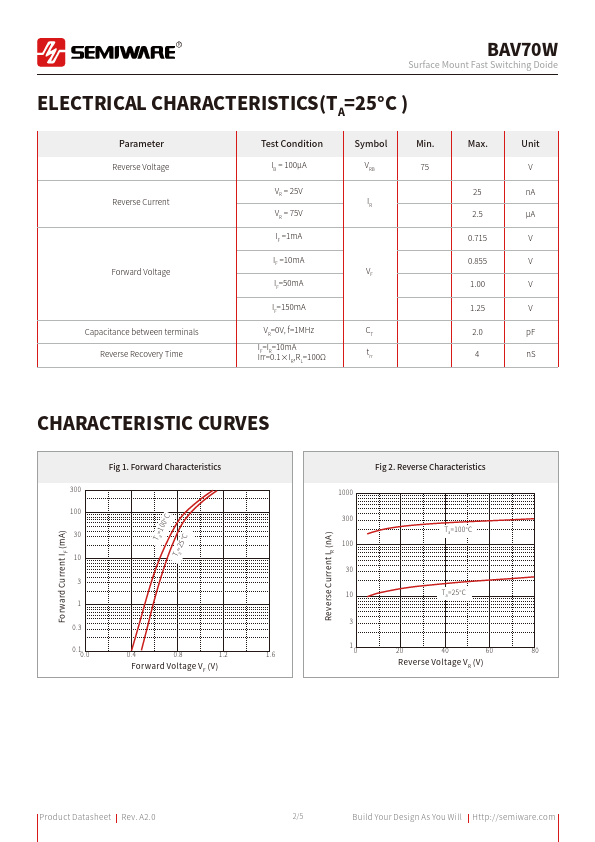

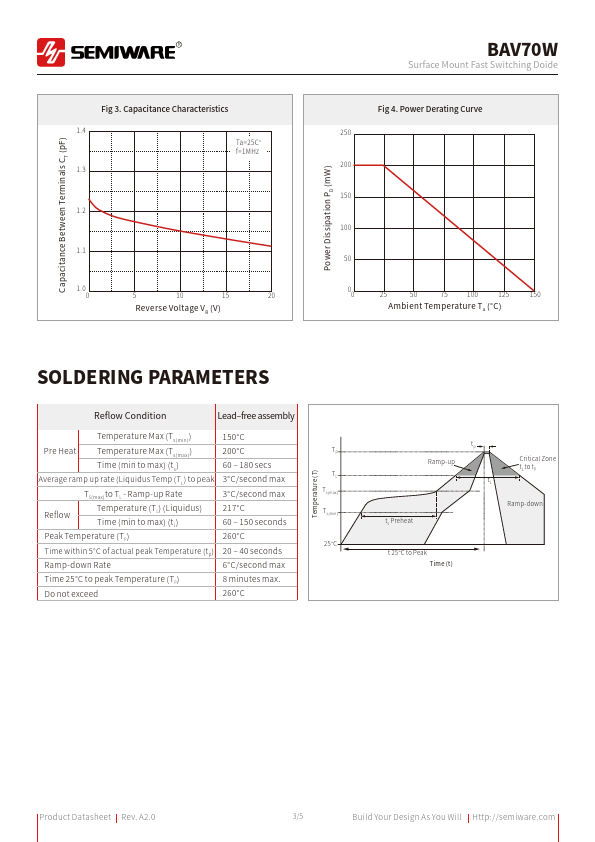

FEATURES Fast Switching Device (TRR <4n S) Power Dissipation of 200m W High Stability and High Reliability Low reverse leakage MECHANICAL DATA SOT-323 Small Outline Plastic Package Polarity: Color band denotes cathode end Mounting Position: Any APPROVALS Ro HS pliance with 2011/65/EU HF pliance with IEC61249-2-21:2003 MAXIMUM RATINGS (TA=25°C ) Parameter Non-Repetitive Peak Reverse Voltage Reverse Voltage Average Rectified Current Non-repetitive Peak Forward Current Typical thermal resistance Peak Forward Surge Current @tp=1ms; TA=25°C Power Dissipation Operating junction temperature Storage temperature range Symbol VRM VR IO IFM RθJA IFSM PD TJ TSTG Surface Mount Fast Switching Doide SOT-323 Marking Schematic Symbol Value 100 75 150 300 625 2.0 200 150 -55 to +150 Unit V V m A m A ℃/W A m W ℃ ℃ Product Datasheet Rev. A2.0 1/5 Build Your Design As You Will Http://semiware. Surface Mount Fast Switching Doide ELECTRICAL CHARACTERISTICS(TA=25°C ) Parameter Reverse Voltage Reverse Current Forward Voltage Capacitance between terminals Reverse Recovery Time Test Condition IB = 100μA VR = 25V VR = 75V IF =1m A IF =10m A IF=50m A IF=150m A VR=0V, f=1MHz IF=IR=10m A Irr=0.1×IR,RL=100Ω Symbol VRB IR CT trr Min. 75 Max. 25 2.5 0.715 0.855 1.00 1.25 2.0 4 Unit V n A μA V V V V p F n...
