BAV74 Datasheet | Formosa MS

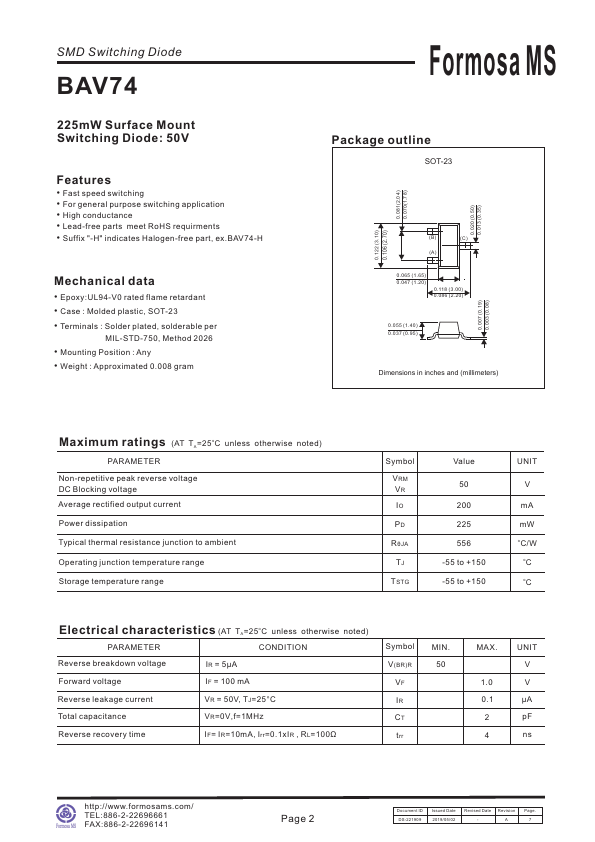

Features - Fast speed switching - For general purpose switching application - High conductance - Lead-free parts meet Ro HS requirments - Suffix "-H" indicates Halogen-free part, ex.BAV74-H Mechanical data - Epoxy:UL94-V0 rated flame retardant - Case : Molded plastic, SOT-23 - Terminals : Solder plated, solderable per MIL-STD-750, Method 2026 - Mounting Position : Any - Weight : Approximated 0.008 gram Formosa MS Package outline SOT-23 0.081(2.04) 0.070(1.78) 0.020 (0.50) 0.013 (0.35) 0.122 (3.10) 0.106 (2.70) (B) (C) (A) 0.065 (1.65) 0.047 (1.20) 0.118 (3.00) 0.086 (2.20) 0.055 (1.40) 0.037 (0.95) 0.007 (0.19) 0.003 (0.08) Dimensions in inches and (millimeters) Maximum ratings (AT TA=25o C unless otherwise noted) PARAMETER Non-repetitive peak reverse voltage DC Blocking voltage Average rectified output current Power dissipation Typical thermal resistance junction to ambient Operating junction temperature range Storage temperature range Symbol VRM VR IO PD RθJA TJ TSTG Value 50 200 225 556 -55 to +150 -55 to +150 UNIT V m A m W o C/W o C o C Electrical characteristics (AT TA=25o C unless otherwise noted) PARAMETER CONDITION Reverse breakdown voltage IR = 5μA Forward...
