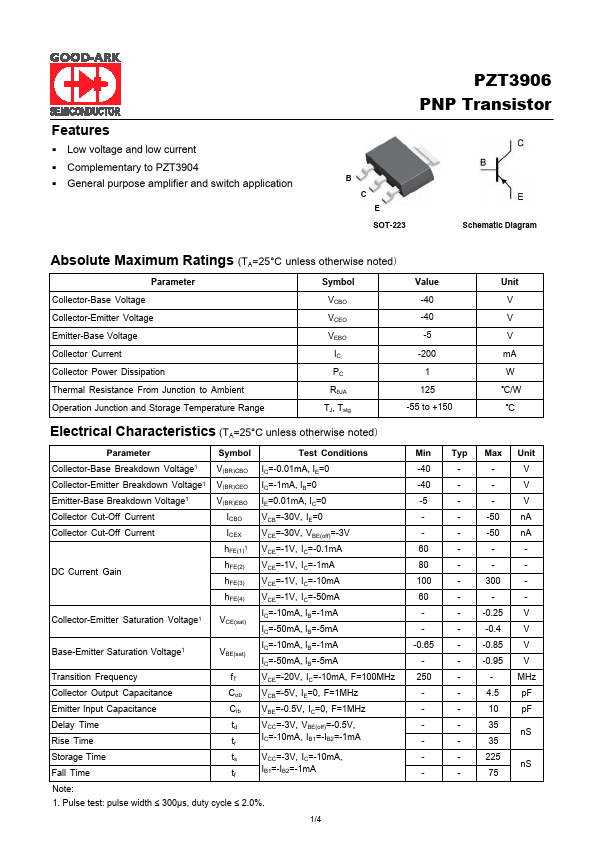

PZT3906 datasheet by Good-Ark Semiconductor.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | PZT3906 |
|---|---|
| Datasheet | PZT3906 PZT3906-GOOD Datasheet (PDF) |
| File Size | 493.06 KB |
| Manufacturer | Good-Ark Semiconductor |
| Description | PNP Transistor |
|
|

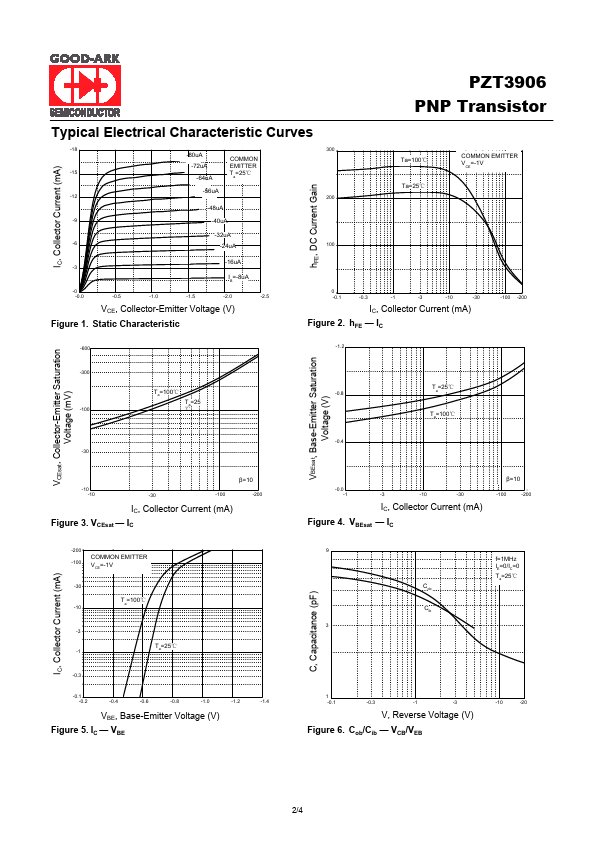

pulse width ≤ 300μs, duty cycle ≤ 2.0%. Static Characteristic 0 -0.1 -0.3 -1 -3 -10 -30 IC, Collector Current (mA) Figure 2. IC VBE -0.0 -1 -3 -10 -30 IC, Collector Current (mA) Figure.
| Brand Logo | Part Number | Description | Other Manufacturers |
|---|---|---|---|
 |
PZT3906 | PNP switching transistor | NXP |
 |
PZT3906 | SMALL SIGNAL PNP TRANSISTOR | STMicroelectronics |
 |
PZT3906 | PNP Silicon Switching Transistor | Siemens Semiconductor Group |
 |
PZT3906 | PNP Amplifier | Fairchild Semiconductor |
 |
PZT3906 | PNP General-Purpose Amplifier | ON Semiconductor |
