PZT3904 - NPN Transistor

GOOD-ARK

Download the PZT3904 datasheet PDF. This datasheet also covers the PZT3904-GOOD variant, as both devices belong to the same npn transistor family and are provided as variant models within a single manufacturer datasheet.

Key Features

Low voltage and low current.
Complementary to PZT3906.
General purpose amplifier and switch.

📥 Download Datasheet

PZT3904 npn transistor by GOOD-ARK - Datasheet Preview — Note: The manufacturer provides a single datasheet file (PZT3904-GOOD-ARK.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	PZT3904
Manufacturer	GOOD-ARK
File Size	1.14 MB
Description	NPN Transistor
Datasheet	PZT3904 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
PZT3904	NPN switching transistor	NXP
PZT3904	SMALL SIGNAL NPN TRANSISTOR	STMicroelectronics
PZT3904	NPN Silicon Switching Transistor	Siemens Semiconductor Group
PZT3904	NPN General Purpose Amplifier	Fairchild Semiconductor
PZT3904	NPN Silicon Switching Transistor	Infineon Technologies AG

Other Datasheets by GOOD-ARK

Part Number	Description
PZT3906	PNP Transistor
PZT2907A	PNP Transistor
PZT5551	NPN Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

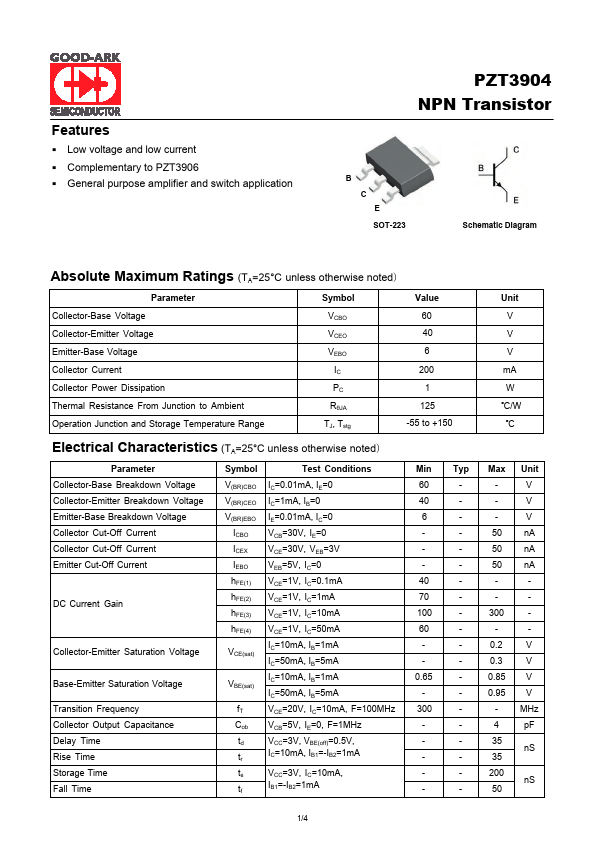

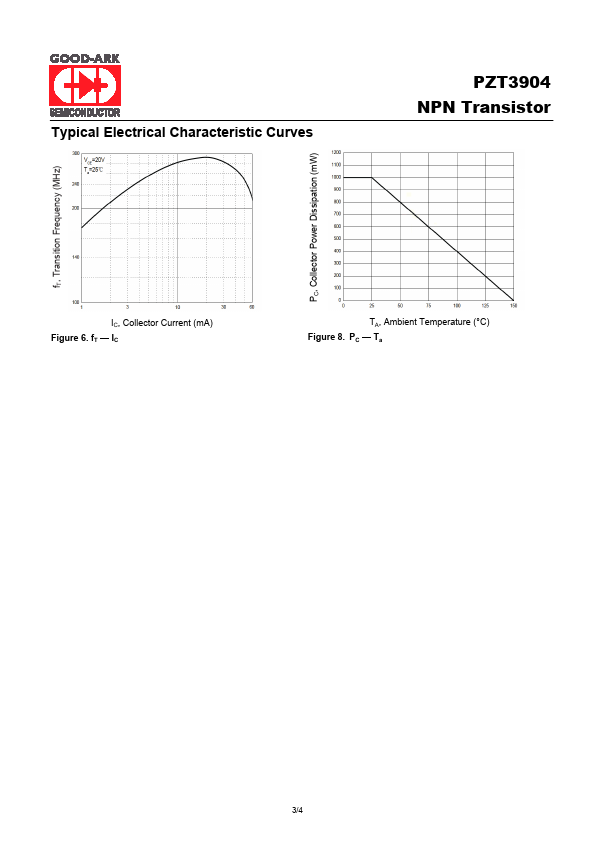

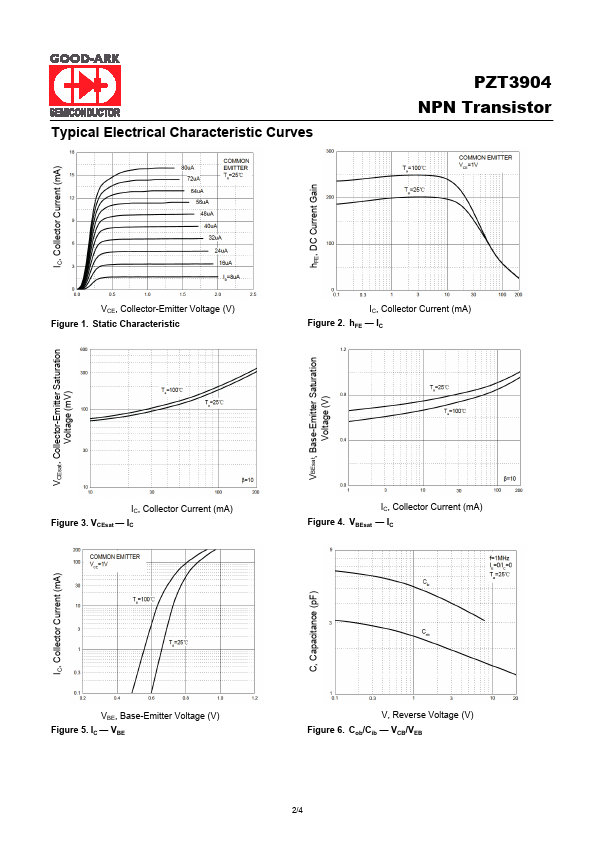

Features ■ Low voltage and low current ■ Complementary to PZT3906 ■ General purpose amplifier and switch application PZT3904 NPN Transistor Absolute Maximum Ratings (TA = 25 °C unless otherwise noted) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance from Junction to Ambient Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC PC RθJA TJ TSTG Value 60 40 6 200 1 125 -55 to +150 -55 to +150 Unit V V V mA W ℃/W ℃ ℃ SOT-223 1. BASE 2. COLLECTOR 3.
