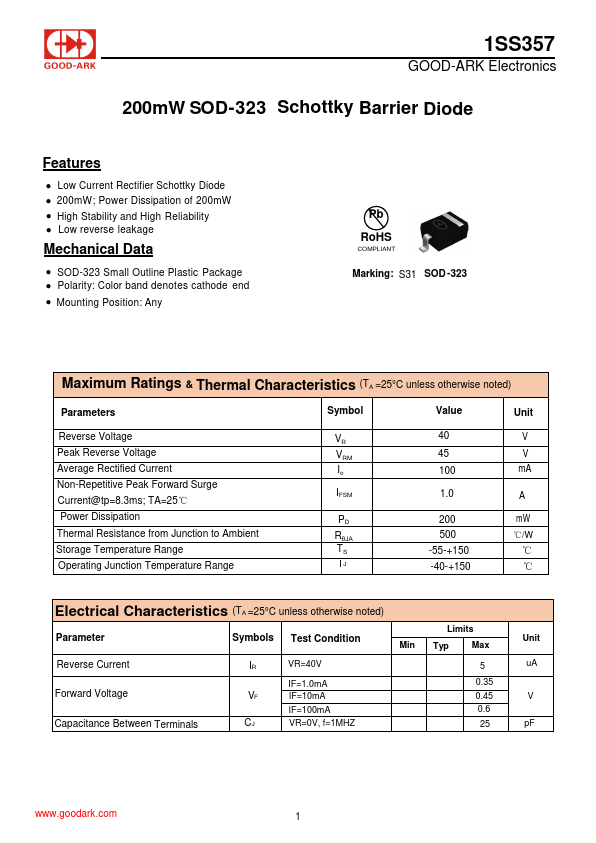

1SS357
1SS357 is 200mW SOD-323 Schottky Barrier Diode manufactured by Good-Ark Semiconductor.
Features
- Low Current Rectifier Schottky Diode
- 200m W; Power Dissipation of 200m W
- High Stability and High Reliability
- Low reverse leakage
Mechanical Data
- SOD-323 Small Outline Plastic Package
- Polarity: Color band denotes cathode end
- Mounting Position: Any
Pb Ro HS
PLIANT
Marking: S31 SOD -323
Maximum Ratings & Thermal Characteristics (TA =25°C unless otherwise noted)
Parameters
Symbol
Value
Unit
Reverse Voltage Peak Reverse Voltage Average Rectified Current Non-Repetitive Peak Forward Surge Current@tp=8.3ms; TA=25℃
Io
100 m A
IFSM
Power Dissipation
200 m W
Thermal Resistance from Junction to Ambient
RθJA
℃/W
Storage Temperature Range
-55-+150
℃
Operating Junction Temperature Range
-40-+150
℃
Electrical Characteristics (TA =25°C unless otherwise...
