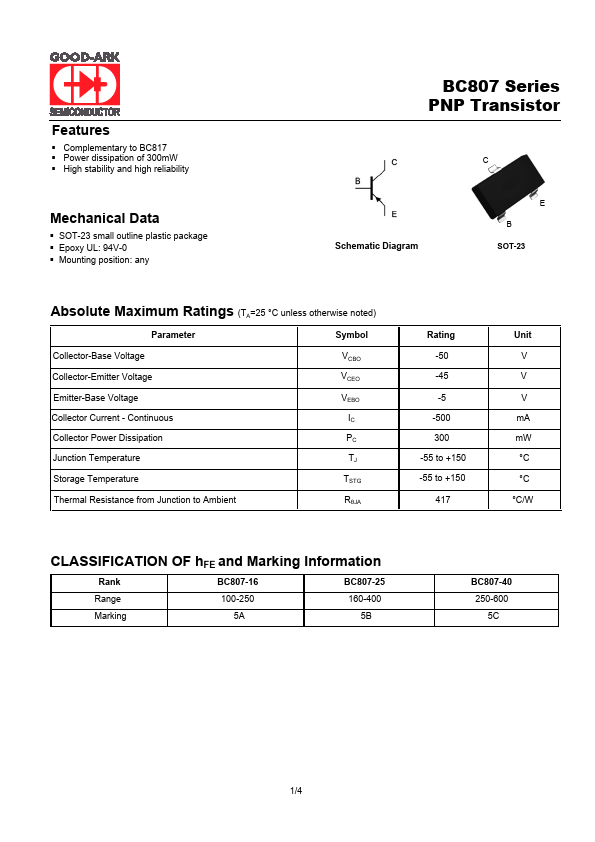

BC807-25 Datasheet PNP Transistor

Manufacturer: GOODARK

This datasheet includes multiple variants, all published together in a single manufacturer document.

Key Features

  • Complementary to BC817.
  • Power dissipation of 300mW.
  • High stability and high reliability Mechanical Data.
  • SOT-23 small outline plastic package.
  • Epoxy UL: 94V-0.
  • Mounting position: any BC807 Series PNP Transistor Schematic Diagram C E B SOT-23 Absolute Maximum Ratings (TA=25 °C unless otherwise noted) Parameter Symbol Collector-Base Voltage Collector-Emitter Voltage VCBO VCEO Emitter-Base Voltage Collector Current - Continuous Collector Power Dissipation Jun.
