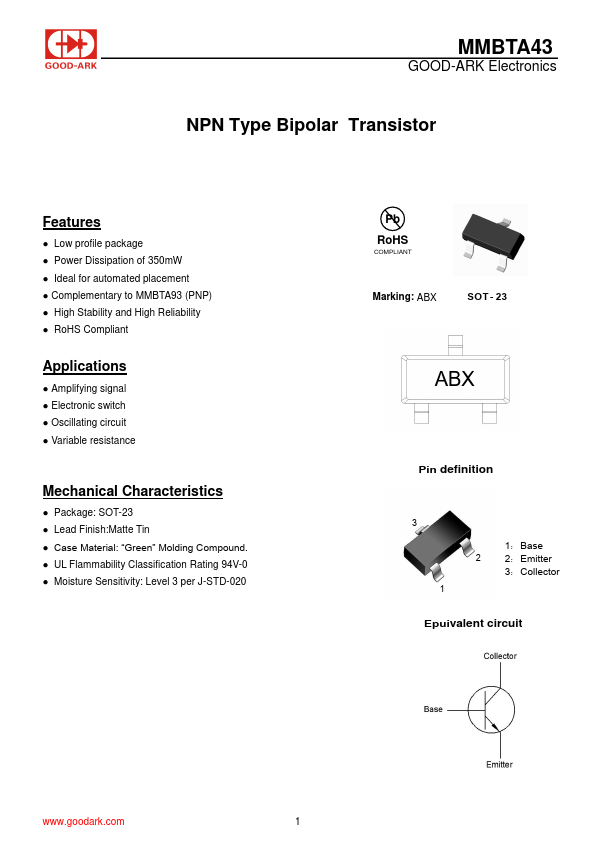

MMBTA43
MMBTA43 is NPN Type Bipolar Transistor manufactured by Good-Ark Semiconductor.
Features
- Low profile package
- Power Dissipation of 350m W
- Ideal for automated placement
- plementary to MMBTA93 (PNP)
- High Stability and High Reliability
- Ro HS pliant
Applications
- Amplifying signal
- Electronic switch
- Oscillating circuit
- Variable resistance
Mechanical Characteristics
- Package: SOT-23
- Lead Finish:Matte Tin
- Case Material: “Green” Molding pound.
- UL Flammability Classification Rating 94V-0
- Moisture Sensitivity: Level 3 per J-STD-020
Pb
Ro HS
PLIANT
Marking: ABX
- 23
Pin definition
3 1
1：Base 2 2：Emitter
3：Collector
Epuivalent circuit
.goodark.
Doc.No.644071
GOOD-ARK Electronics

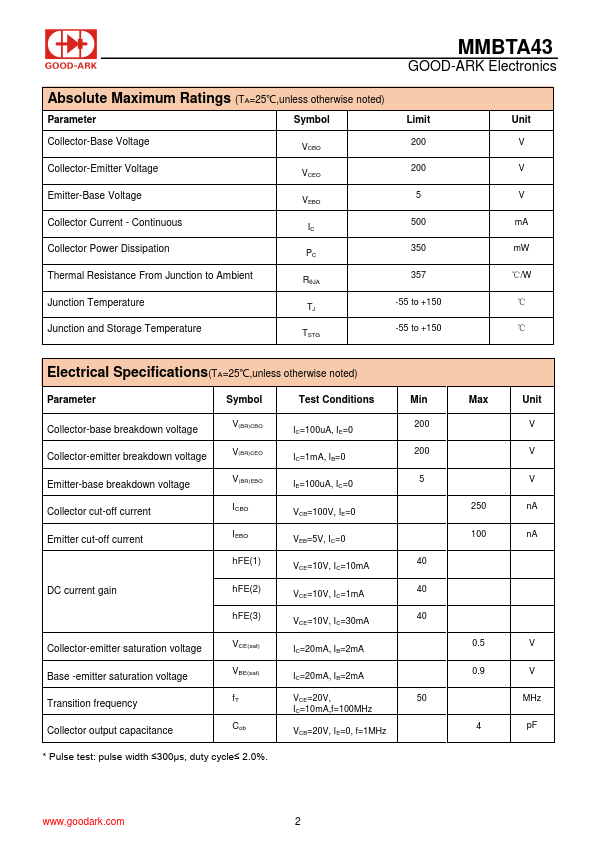

Absolute Maximum Ratings (TA=25℃,unless otherwise noted)
Parameter
Symbol
Limit
Collector-Base...
