Good-Ark Semiconductor BAS16TW
Switching Diode
| Part No. | BAS16TW |
|---|---|
| Datasheet | BAS16TW Download |
| Manufacturer |  Good-Ark Semiconductor |
| Description | Switching Diode |
| Buy | Stock & Price |

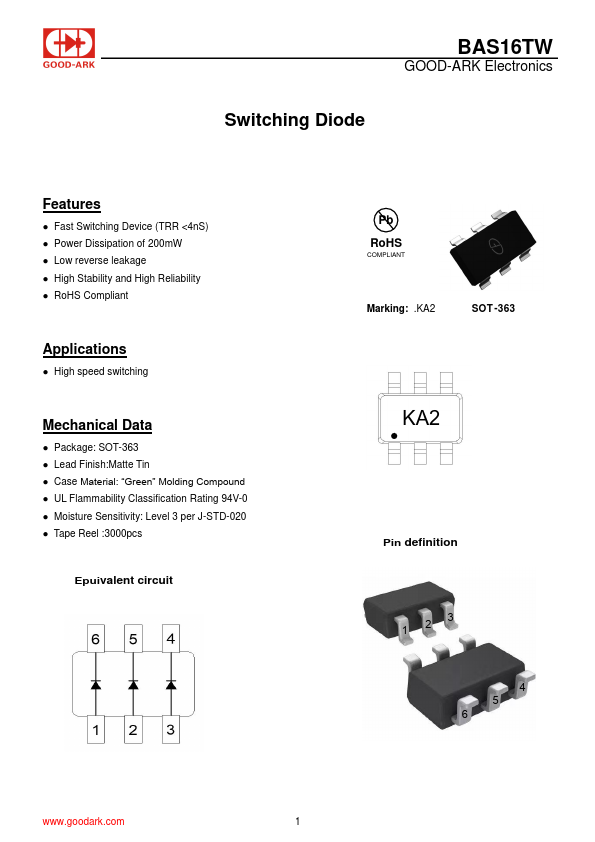

FEATURES
● Fast Switching Device (TRR <4nS)● Power Dissipation of 200mW
● Low reverse leakage
● High Stability and High Reliability
● RoHS Compliant
APPLICATIONS
● High speed switchingMECHANICAL DATA
● Package: SOT-363● Lead Finish:Matte Tin
● Case Material: “Green” Molding Compound
● UL Flammability Classification Rating 94V-0
● Moisture Sensitivity: Level 3 per J-STD-020
● Tape Reel :3000pcs Epuivalent circuit Pb RoHS COMPLIANT Marking: .KA2 SOT -363 KA2 Pin definition 1 23 4 5 6 1 Doc.No.672065 BAS16TW GOOD-ARK Electronics

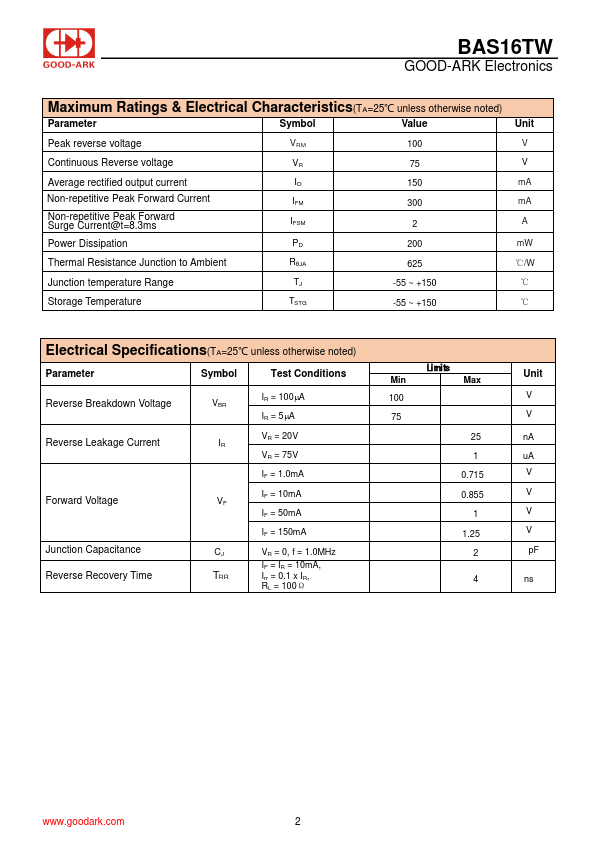

MAXIMUM RATINGS
&ELECTRICAL CHARACTERISTICS
(TA=25℃ unless otherwise noted) Parameter Symbol Value Unit Peak reverse voltage VRM 100 V Continuous Reverse voltage VR 75 V Average rectified output current IO Non-repetitive Peak Forward Current IFM Non-repetitive Peak Forward Surge Current@t=8.3ms IFSM 150 mA 300 mA 2 A Power Dissipation PD 200 mW Thermal Resistance Junction to Ambient RθJA 625 ℃/W Junction temperature Range TJ -55 ~ +150 ℃ Storage Temperature TST...
