Good-Ark Semiconductor BAS516
Switching Diode
- Max Operating Temp : 150°C
- Min Operating Temp : -65°C
Source:
Octopart
| Part No. | BAS516 |
|---|---|
| Datasheet | BAS516 Download |
| Manufacturer |  Good-Ark Semiconductor |
| Description | Switching Diode |
| Buy | Stock & Price |

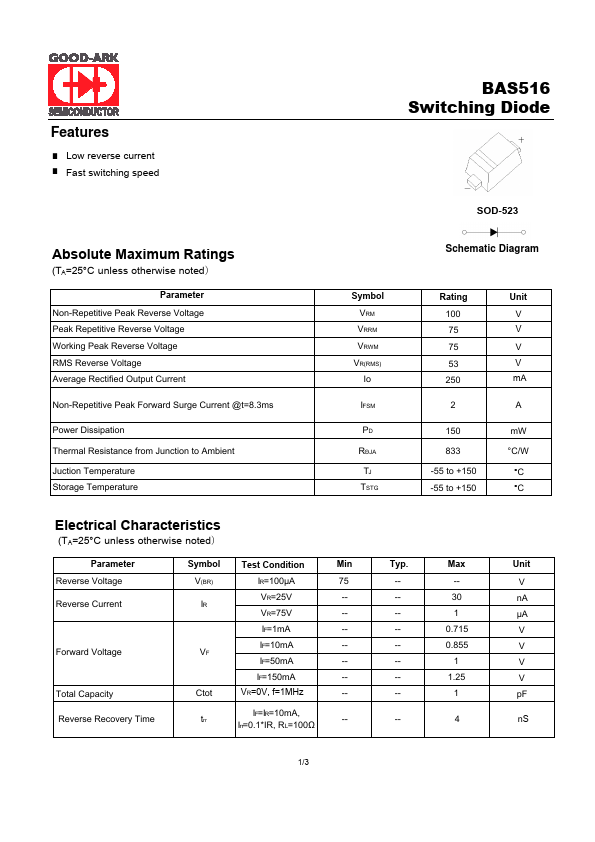

FEATURES
● Low reverse current● Fast switching speed BAS516 Switching Diode SOD-523
ABSOLUTE MAXIMUM RATINGS
(TA=25°C unless otherwise noted） Parameter Non-Repetitive Peak Reverse Voltage Peak Repetitive Reverse Voltage Working Peak Reverse Voltage RMS Reverse Voltage Average Rectified Output Current Non-Repetitive Peak Forward Surge Current @t=8.3ms Power Dissipation Thermal Resistance from Junction to Ambient Juction Temperature Storage Temperature Symbol VRM VRRM VRWM VR(RMS) Io IFSM PD RΘJA TJ TSTG Schematic Diagram Rating 100 75 75 53 250 2 150 833 -55 to +150 -55 to +150 Unit V V V V mA A mW °C/W °C °CELECTRICAL CHARACTERISTICS
(TA=25°C unless otherwise noted） Parameter Reverse Voltage Reverse Current Forward Voltage Total Capacity Reverse Recovery Time Symbol Test Condition Min V(BR) IR=100µA 75 VR=25V -- IR VR=75V -- IF=1mA -- IF=10mA -- VF IF=50mA -- IF=150mA -- Ctot VR=0V, f=1MHz -- trr IF=IR=10mA, -- Irr=0.1*IR, RL=100Ω Typ. --------- -- Max -30 1 0.715 0.855 1 1.25 1 4 Un...
