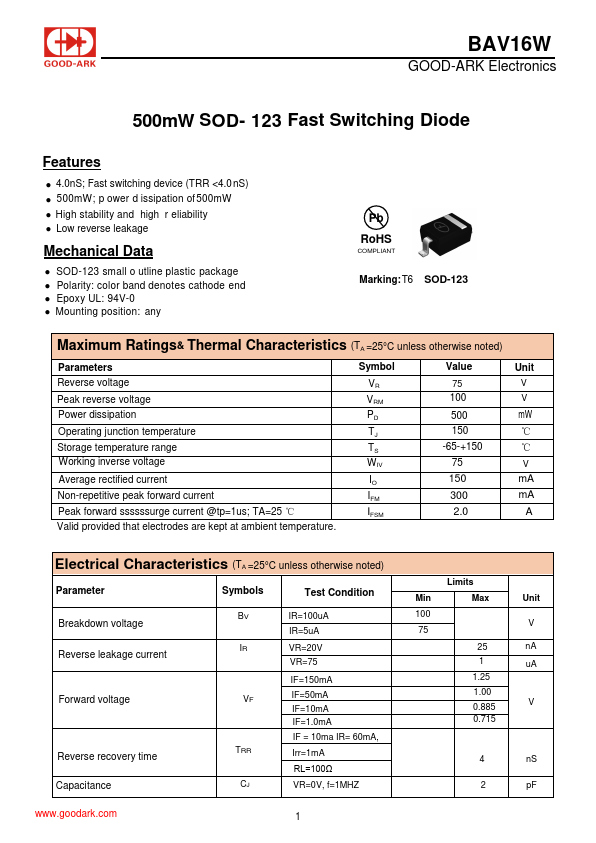

BAV16W Datasheet PDF

FEATURES

● 4.0nS; Fast switching device (TRR <4.0 nS)
● 500mW; p ower d issipation of 500mW
● High stability and high r eliability
● Low reverse leakage

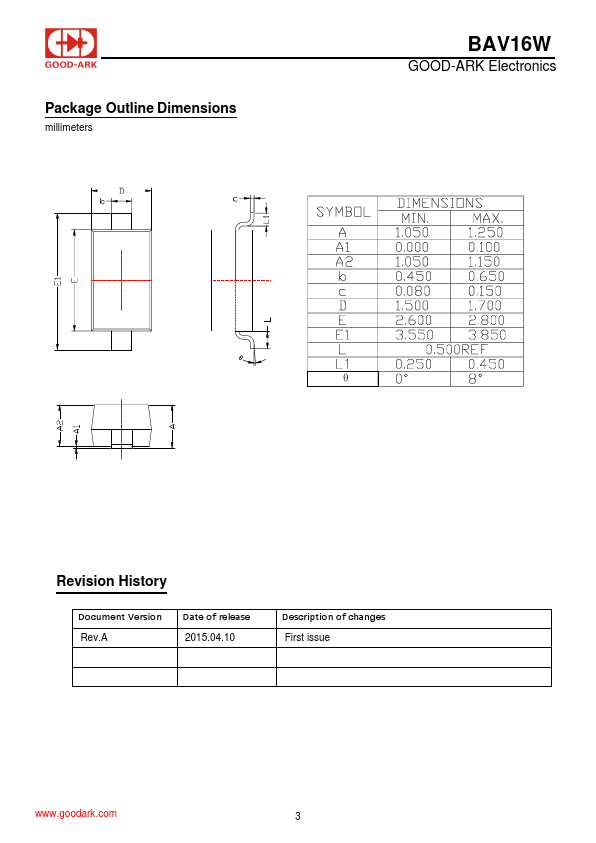

MECHANICAL DATA

● SOD-123 small o utline plastic package
● Polarity: color band denotes cathode end
● Epoxy UL: 94V-0
● Mounting position: any Pb RoHS COMPLIANT Marking:T6 SOD-123

MAXIMUM RATINGS

& Thermal Characteristics (TA =25°C unless otherwise noted) Parameters Reverse voltage Peak reverse voltage Power dissipation Operating junction temperature Storage temperature range Working inverse voltage Average rectified current Non-repetitive peak forward current Peak forward ssssssurge current @tp=1us; TA=25 ℃ Valid provided that electrodes are kept at ambient temperature. Symbol VR VRM PD TJ TS WIV IO IFM IFSM Value Unit 75 V 100 V 500 mW 150 ℃ -65-+150 ℃ 75 V 150 mA 300 mA 2.0 A

ELECTRICAL CHARACTERISTICS

(TA =25°C unless otherwise noted) Parameter Symbols Test Condition Breakdown voltage Reverse leakage current Forward voltage Reverse...
