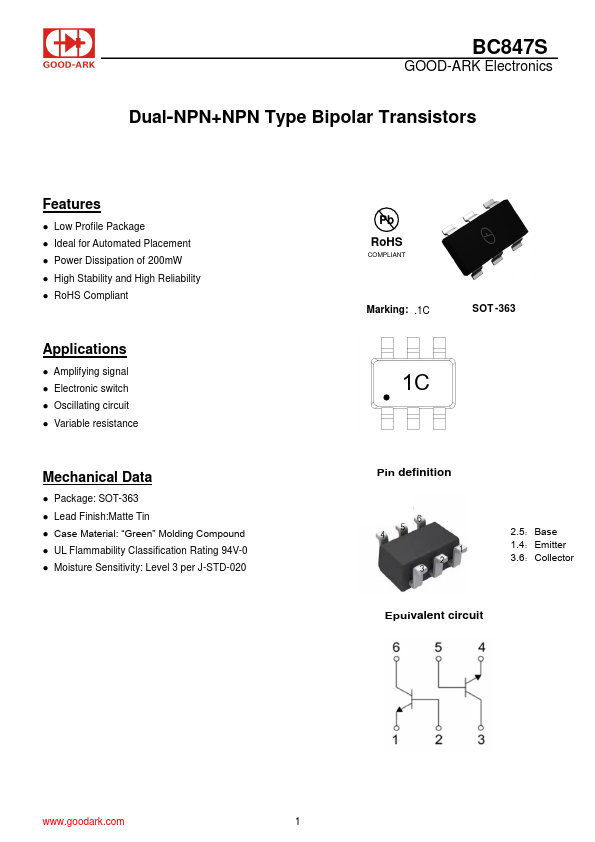

Good-Ark Semiconductor BC847S
The information described here may contain technical inaccuracies or typographical errors. by various means, including our website home page.| Part No. | BC847S |
|---|---|
| Datasheet | BC847S Download |
| Manufacturer |  Good-Ark Semiconductor |
| Description | Dual-NPN+NPN Type Bipolar Transistors |
| Buy | Stock & Price |
FEATURES
● Low Profile Package● Ideal for Automated Placement
● Power Dissipation of 200mW
● High Stability and High Reliability
● RoHS Compliant
APPLICATIONS
● Amplifying signal● Electronic switch
● Oscillating circuit
● Variable resistance
MECHANICAL DATA
● Package: SOT-363● Lead Finish:Matte Tin
● Case Material: “Green” Molding Compound
● UL Flammability Classification Rating 94V-0
● Moisture Sensitivity: Level 3 per J-STD-020 Pb RoHS COMPLIANT Marking: .1C SOT -363 1C Pin definitiSoOnT- 2.5：Base 1.4：Emitter 3.6：Collector Epuivalent circuit 1 Doc.No.672065 BC847S GOOD-ARK Electronics

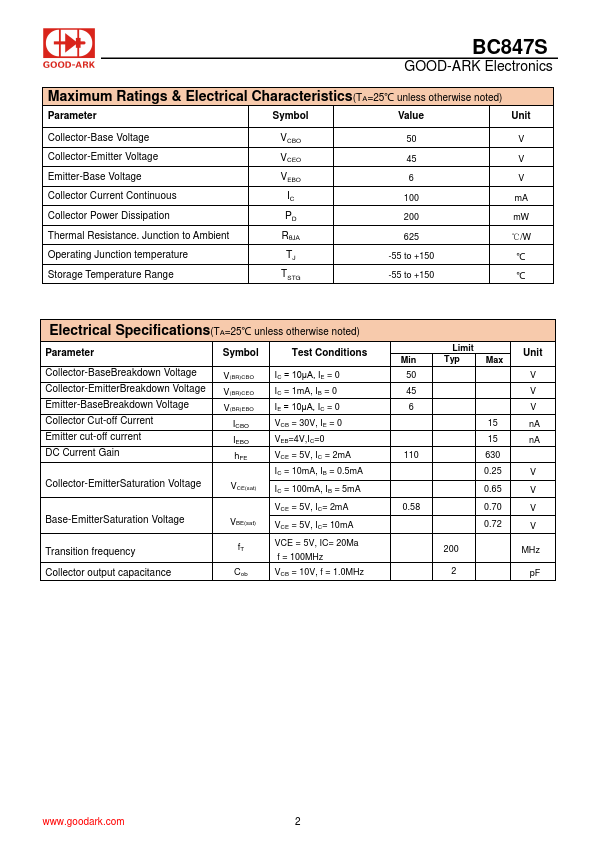

MAXIMUM RATINGS
&ELECTRICAL CHARACTERISTICS
(TA=25℃ unless otherwise noted) Parameter Symbol Value Unit Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Continuous Collector Power Dissipation Thermal Resistance. Junction to Ambient Operating Junction temperature Storage Temperature Range VCBO VCEO VEBO IC PD RθJA TJ TSTG 50 45 6 100 200 625 -55 to +150 -55 to +1...
