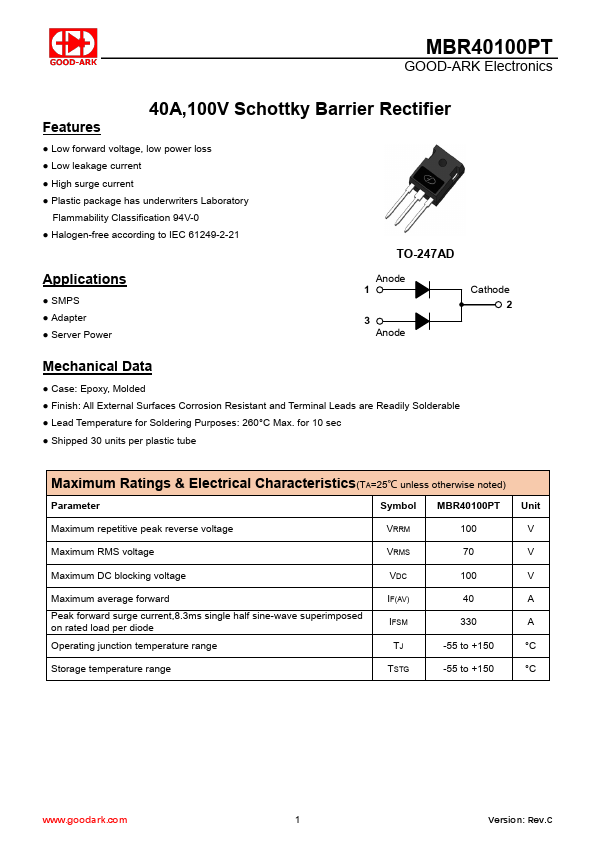

Good-Ark Semiconductor MBR40100PT
40A 100V Schottky Barrier Rectifier
| Part No. | MBR40100PT |
|---|---|
| Datasheet | MBR40100PT Download |
| Manufacturer |  Good-Ark Semiconductor |
| Description | 40A 100V Schottky Barrier Rectifier |
| Buy | Stock & Price |
FEATURES
40A,100V Schottky Barrier Rectifier● Low forward voltage, low power loss
● Low leakage current
● High surge current
● Plastic package has underwriters Laboratory Flammability Classification 94V-0
● Halogen-free according to IEC 61249-2-21 TO-247AD
APPLICATIONS
● SMPS● Adapter
● Server Power Anode 1 3 Anode Cathode 2
MECHANICAL DATA
● Case: Epoxy, Molded● Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
● Lead Temperature for Soldering Purposes: 260°C Max. for 10 sec
● Shipped 30 units per plastic tube
MAXIMUM RATINGS
&ELECTRICAL CHARACTERISTICS
(TA=25℃ unless otherwise noted) Parameter Symbol MBR40100PT Unit Maximum repetitive peak reverse voltage VRRM 100 V Maximum RMS voltage VRMS 70 V Maximum DC blocking voltage VDC 100 V Maximum average forward Peak forward surge current,8.3ms single half sine-wave superimposed on rated load per diode Operating junction temperature range IF(AV) IFSM TJ 40 A 330 A -55 to +150 °C Storage temperat...
