Good-Ark Semiconductor MMBT2222A
NPN Transistor
| Part No. | MMBT2222A |
|---|---|
| Datasheet | MMBT2222A Download |
| Manufacturer |  Good-Ark Semiconductor |
| Description | NPN Transistor |
| Buy | Stock & Price |

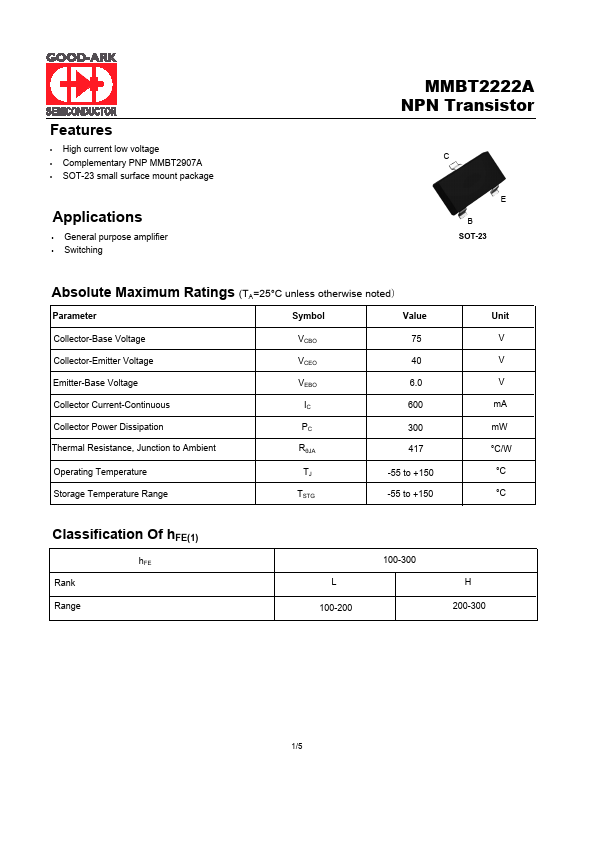

FEATURES
● High current low voltage● Complementary PNP MMBT2907A
● SOT-23 small surface mount package
APPLICATIONS
● General purpose amplifier● Switching MMBT2222A NPN Transistor C E B SOT-23
ABSOLUTE MAXIMUM RATINGS
(TA=25°C unless otherwise noted） Parameter Symbol Value Collector-Base Voltage VCBO 75 Collector-Emitter Voltage VCEO 40 Emitter-Base Voltage VEBO 6.0 Collector Current-Continuous IC 600 Collector Power Dissipation PC 300 Thermal Resistance, Junction to Ambient RθJA 417 Operating Temperature TJ -55 to +150 Storage Temperature Range TSTG -55 to +150 Unit V V V mA mW °C/W °C °C Classification Of hFE(1) hFE Rank Range L 100-200 100-300 H 200-300 1/5 MMBT2222A NPN TransistorELECTRICAL CHARACTERISTICS

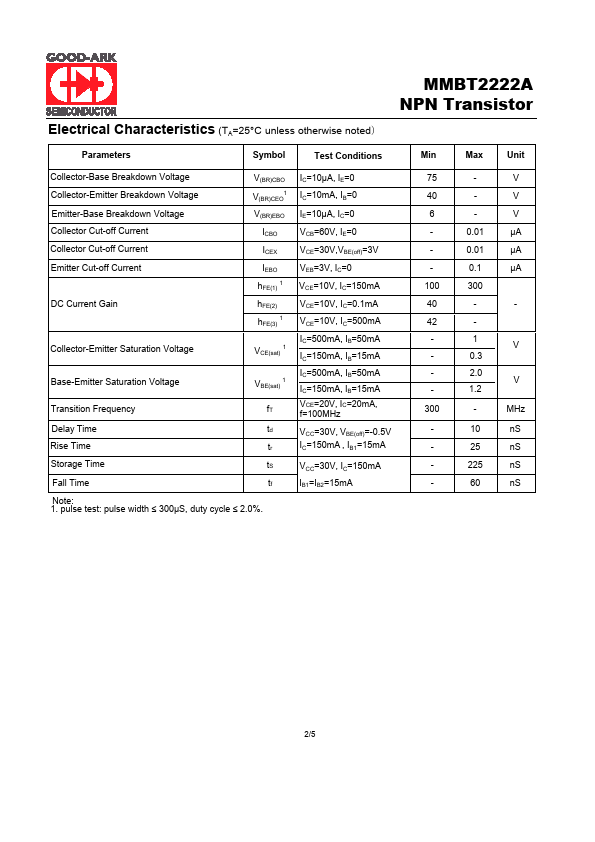

(TA=25°C unless otherwise noted） Parameters Symbol Test Conditions Min Max Unit Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Cut-off Current Collector Cut-off Current Emitter Cut-off Current DC Current Gain Collec...
