Good-Ark Semiconductor MMBTA92
PNP Transistor
| Part No. | MMBTA92 |
|---|---|
| Datasheet | MMBTA92 Download |
| Manufacturer |  Good-Ark Semiconductor |
| Description | PNP Transistor |
| Buy | Stock & Price |

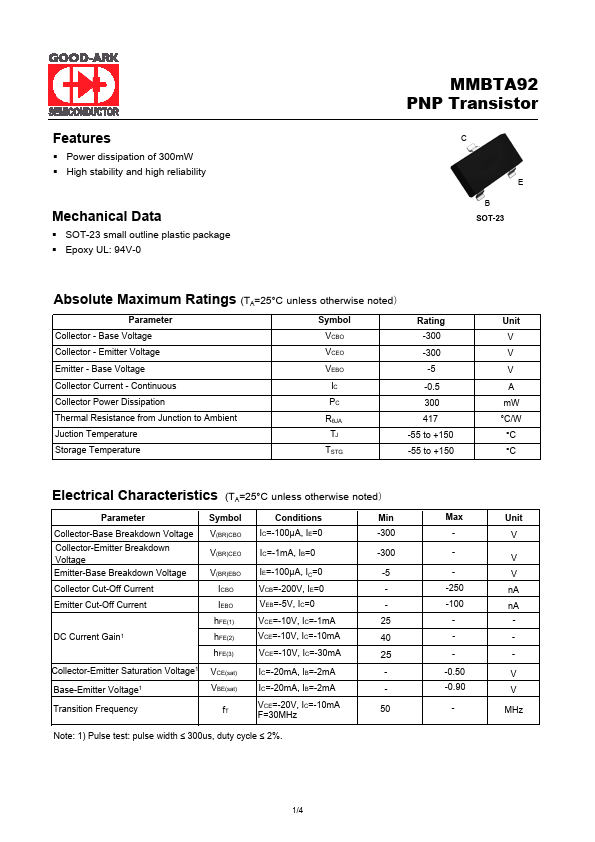

FEATURES
● Power dissipation of 300mW● High stability and high reliability
MECHANICAL DATA
● SOT-23 small outline plastic package● Epoxy UL: 94V-0 MMBTA92 PNP Transistor C E B SOT-23
ABSOLUTE MAXIMUM RATINGS
(TA=25°C unless otherwise noted） Parameter Collector - Base Voltage Symbol VCBO Rating -300 Collector - Emitter Voltage VCEO -300 Emitter - Base Voltage VEBO -5 Collector Current - Continuous Collector Power Dissipation Thermal Resistance from Junction to Ambient Juction Temperature Storage Temperature IC PC RθJA TJ TSTG -0.5 300 417 -55 to +150 -55 to +150 Unit V V V A mW °C/W °C °CELECTRICAL CHARACTERISTICS
(TA=25°C unless otherwise noted） Parameter Symbol Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage V(BR)CBO V(BR)CEO V(BR)EBO Collector Cut-Off Current ICBO Emitter Cut-Off Current IEBO hFE(1) DC Current Gain1 hFE(2) hFE(3) Collector-Emitter Saturation Voltage1 VCE(sat) Base-Emitter Voltage1 VBE(sat) Transition Frequency fT...
