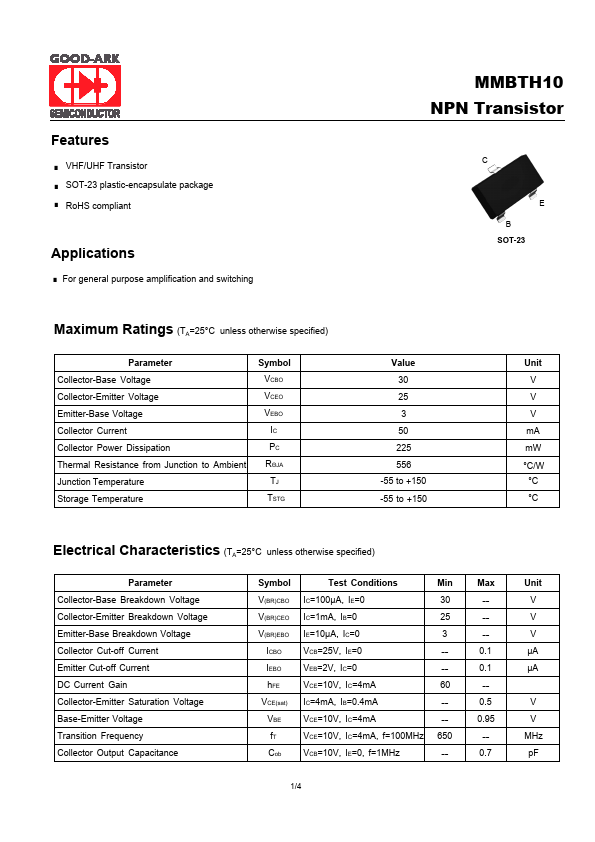

Good-Ark Semiconductor MMBTH10
NPN Transistor
| Part No. | MMBTH10 |
|---|---|
| Datasheet | MMBTH10 Download |
| Manufacturer |  Good-Ark Semiconductor |
| Description | NPN Transistor |
| Buy | Stock & Price |
FEATURES
● VHF/UHF Transistor● SOT-23 plastic-encapsulate package
● RoHS compliant
APPLICATIONS
● For general purpose amplification and switching MMBTH10 NPN Transistor C E B SOT-23MAXIMUM RATINGS
(TA=25°C unless otherwise specified) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance from Junction to Ambient Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC PC RΘJA TJ TSTG Value 30 25 3 50 225 556 -55 to +150 -55 to +150 Unit V V V mA mW °C/W °C °CELECTRICAL CHARACTERISTICS
(TA=25°C unless otherwise specified) Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Cut-off Current Emitter Cut-off Current DC Current Gain Collector-Emitter Saturation Voltage Base-Emitter Voltage Transition Frequency Collector Output Capacitance Symbol Test Conditions Min V(BR)CBO IC=100µA, IE=0 30 V(BR)CEO IC=1mA, IB=0 25 V(BR)EBO...
