MMBTH10 - Silicon Epitaxial Planar Transistor

Galaxy Microelectronics

Key Features

z High transition frequency. z Power dissipation. (PC=350mW). Pb Lead-free.

MMBTH10 silicon epitaxial planar transistor by Galaxy Microelectronics - Datasheet Preview

Datasheet Details

Part number	MMBTH10
Manufacturer	Galaxy Microelectronics
File Size	187.12 KB
Description	Silicon Epitaxial Planar Transistor
Datasheet	MMBTH10 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
MMBTH10	VHF/UHF TRANSISTOR	Motorola
MMBTH10	NPN Epitaxial Planar Transistor	SeCoS
MMBTH10	NPN VHF/UHF Transistors	MCC
MMBTH10	NPN TRANSISTOR	Diodes Incorporated
MMBTH10	NPN Transistor	Fairchild

Other Datasheets by Galaxy Microelectronics

Part Number	Description
MMBT1616A	NPN Silicon Epitaxial Planar Transistor
MMBT2222	NPN General Purpose Amplifier
MMBT2222A	NPN Amplifier
MMBT2222AT	NPN SWITCHING TRANSISTOR
MMBT2369	NPN General Purpose Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

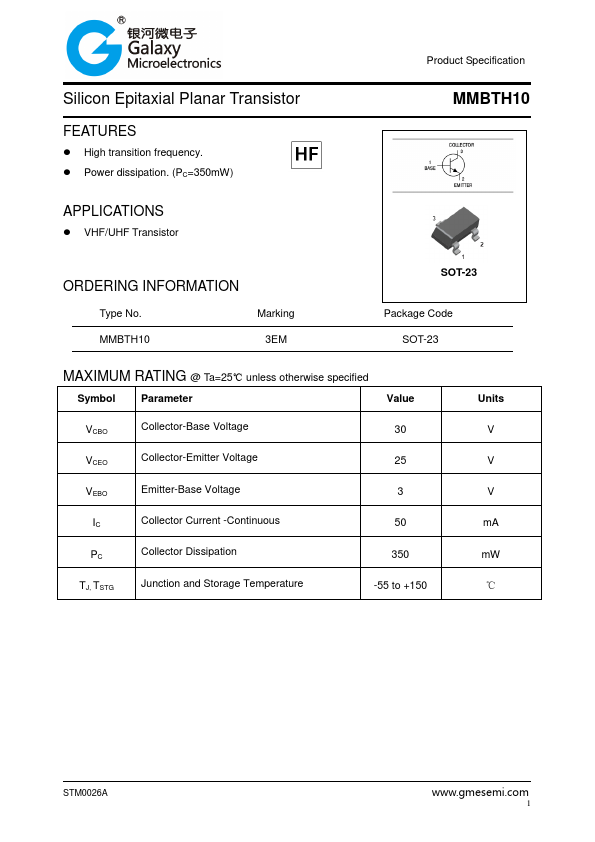

Silicon Epitaxial Planar Transistor FEATURES z High transition frequency. z Power dissipation.(PC=350mW). Pb Lead-free APPLICATIONS z VHF/UHF Transistor. Production specification MMBTH10 ORDERING INFORMATION Type No. Marking MMBTH10 3EM SOT-23 Package Code SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO Collector-Base Voltage 30 VCEO Collector-Emitter Voltage 25 VEBO Emitter-Base Voltage 3 IC Collector Current -Continuous 50 PC Collector Dissipation 350 Tj,Tstg Junction and Storage Temperature -55 to +150 Units V V V mA mW ℃ C125 Rev.A www.gmicroelec.
