Good-Ark Semiconductor PZT2222A
NPN Transistor
| Part No. | PZT2222A |
|---|---|
| Datasheet | PZT2222A Download |
| Manufacturer |  Good-Ark Semiconductor |
| Description | NPN Transistor |
| Buy | Stock & Price |

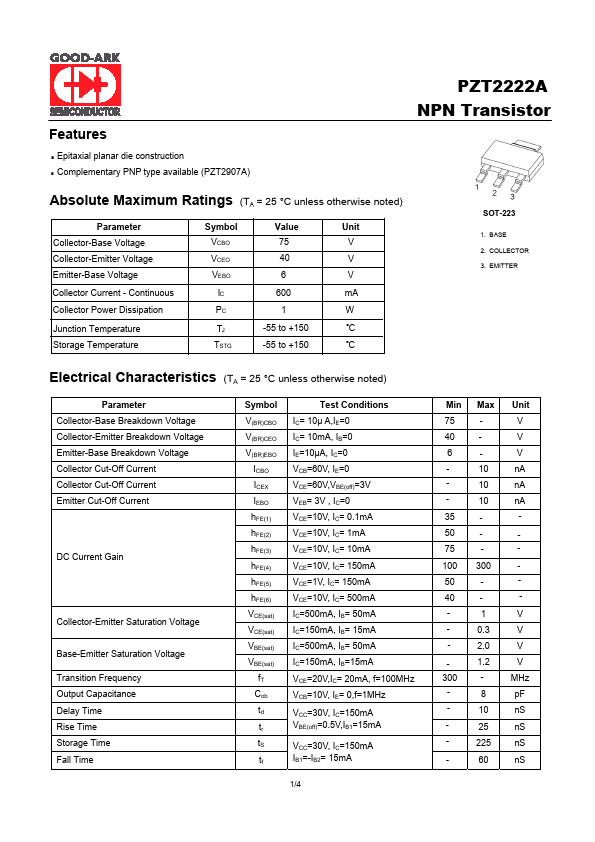

FEATURES
● Epitaxial planar die construction● Complementary PNP type available (PZT2907A) PZT2222A NPN Transistor
ABSOLUTE MAXIMUM RATINGS
(TA = 25 °C unless otherwise noted) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Symbol VCBO VCEO VEBO Value 75 40 6 Unit V V V Collector Current - Continuous IC 600 mA Collector Power Dissipation PC 1 W Junction Temperature Storage Temperature TJ -55 to +150 ℃ TSTG -55 to +150 ℃ SOT-223 1. BASE 2. COLLECTOR 3. EMITTERELECTRICAL CHARACTERISTICS
(TA = 25 °C unless otherwise noted) Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Cut-Off Current Collector Cut-Off Current Emitter Cut-Off Current DC Current Gain Collector-Emitter Saturation Voltage Base-Emitter Saturation Voltage Transition Frequency Output Capacitance Delay Time Rise Time Storage Time Fall Time Symbol V(BR)CBO V(BR)CEO V(BR)EBO ICBO ICEX IEBO hFE(1) hFE(2) hFE(3) hFE(4) hFE(5) hF...
