Good-Ark Semiconductor PZT4403
PNP Transistor
| Part No. | PZT4403 |
|---|---|
| Datasheet | PZT4403 Download |
| Manufacturer |  Good-Ark Semiconductor |
| Description | PNP Transistor |
| Buy | Stock & Price |

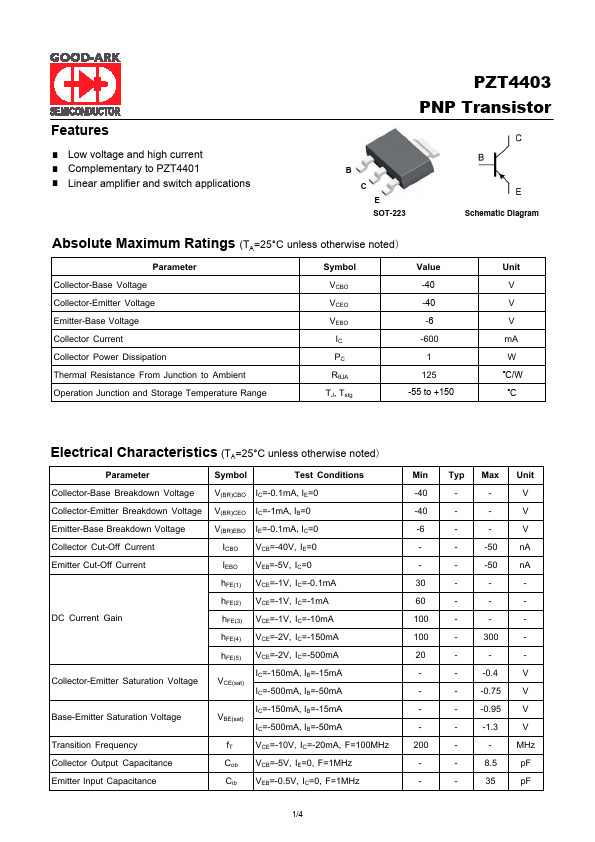

FEATURES
● Low voltage and high current● Complementary to PZT4401
● Linear amplifier and switch applications PZT4403 PNP Transistor B C E SOT-223 Schematic Diagram
ABSOLUTE MAXIMUM RATINGS
(TA=25°C unless otherwise noted） Parameter Symbol Value Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance From Junction to Ambient Operation Junction and Storage Temperature Range VCBO VCEO VEBO IC PC RθJA TJ, Tstg -40 -40 -6 -600 1 125 -55 to +150 Unit V V V mA W ℃/W ℃ELECTRICAL CHARACTERISTICS
(TA=25°C unless otherwise noted） Parameter Symbol Test Conditions Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Cut-Off Current Emitter Cut-Off Current DC Current Gain Collector-Emitter Saturation Voltage Base-Emitter Saturation Voltage Transition Frequency Collector Output Capacitance Emitter Input Capacitance V(BR)CBO IC=-0.1mA, IE=0 V(BR)CEO IC=-1mA, IB=0 V(...
