Good-Ark Semiconductor PZTA92
PNP Transistor
| Part No. | PZTA92 |
|---|---|
| Datasheet | PZTA92 Download |
| Manufacturer |  Good-Ark Semiconductor |
| Description | PNP Transistor |
| Buy | Stock & Price |
FEATURES

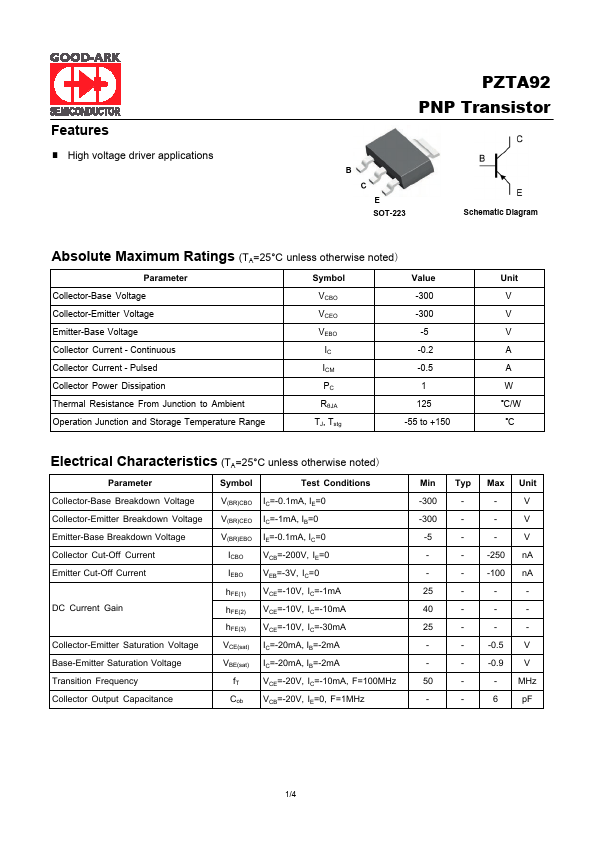

● High voltage driver applications PZTA92 PNP Transistor B C E SOT-223 Schematic DiagramABSOLUTE MAXIMUM RATINGS
(TA=25°C unless otherwise noted） Parameter Symbol Value Collector-Base Voltage VCBO -300 Collector-Emitter Voltage VCEO -300 Emitter-Base Voltage VEBO -5 Collector Current - Continuous IC -0.2 Collector Current - Pulsed ICM -0.5 Collector Power Dissipation PC 1 Thermal Resistance From Junction to Ambient RθJA 125 Operation Junction and Storage Temperature Range TJ, Tstg -55 to +150 Unit V V V A A W ℃/W ℃ELECTRICAL CHARACTERISTICS

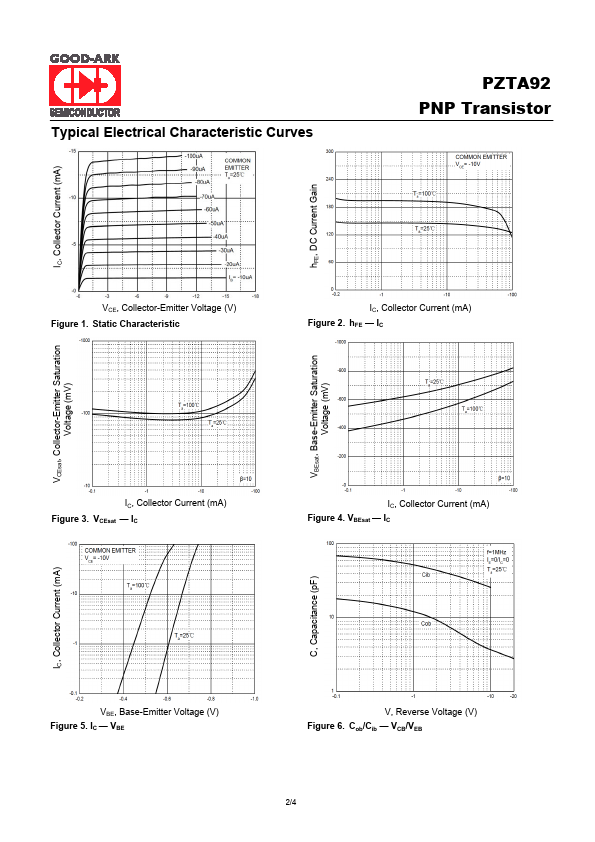

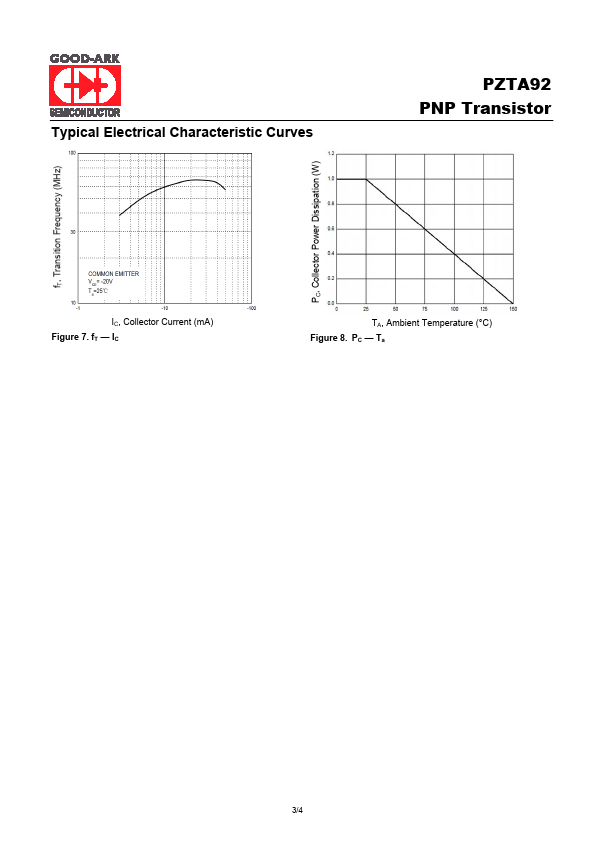

(TA=25°C unless otherwise noted） Parameter Symbol Test Conditions Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Cut-Off Current Emitter Cut-Off Current DC Current Gain Collector-Emitter Saturation Voltage Base-Emitter Saturation Voltage Transition Frequency Collector Output Capacitance V(BR)CBO IC=-0.1mA, IE=0 V(BR)CEO IC=-1mA, IB=0 V(BR)EBO IE=-0.1mA, IC=0 ICBO VCB=-200V, IE...
