Good-Ark Semiconductor RB751S-40
The information described here may contain technical inaccuracies or typographical errors. by various means, including our website home page.| Part No. | RB751S-40 |
|---|---|
| Datasheet | RB751S-40 Download |
| Manufacturer |  Good-Ark Semiconductor |
| Description | Schottky Barrier Diode |
| Buy | Stock & Price |

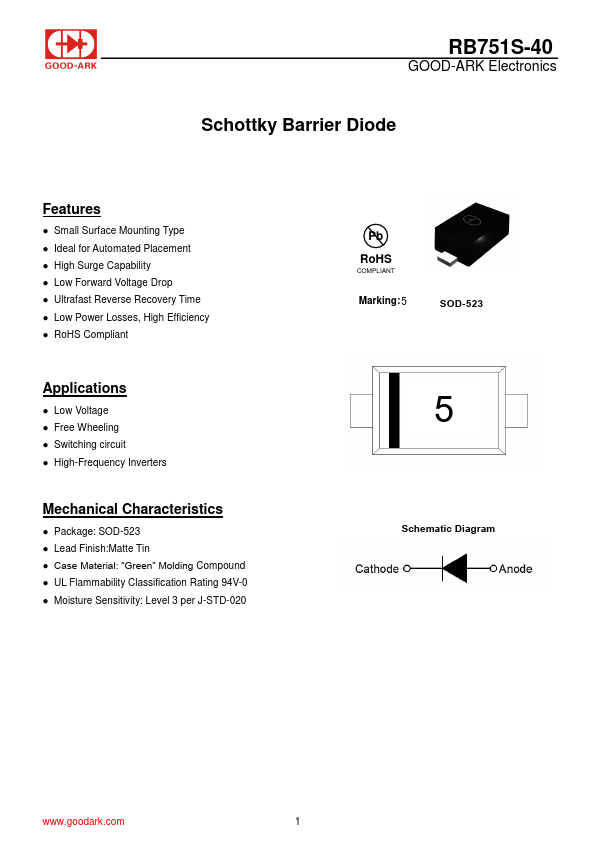

FEATURES
● Small Surface Mounting Type● Ideal for Automated Placement
● High Surge Capability
● Low Forward Voltage Drop
● Ultrafast Reverse Recovery Time
● Low Power Losses, High Efficiency
● RoHS Compliant
APPLICATIONS
● Low Voltage● Free Wheeling
● Switching circuit
● High-Frequency Inverters Mechanical Characteristics
● Package: SOD-523
● Lead Finish:Matte Tin
● Case Material: “Green” Molding Compound
● UL Flammability Classification Rating 94V-0
● Moisture Sensitivity: Level 3 per J-STD-020 Pb RoHS COMPLIANT Marking: 5 SOD-523 5 Schematic Diagram 1 Doc.No.644071 RB751S-40 GOOD-ARK Electronics

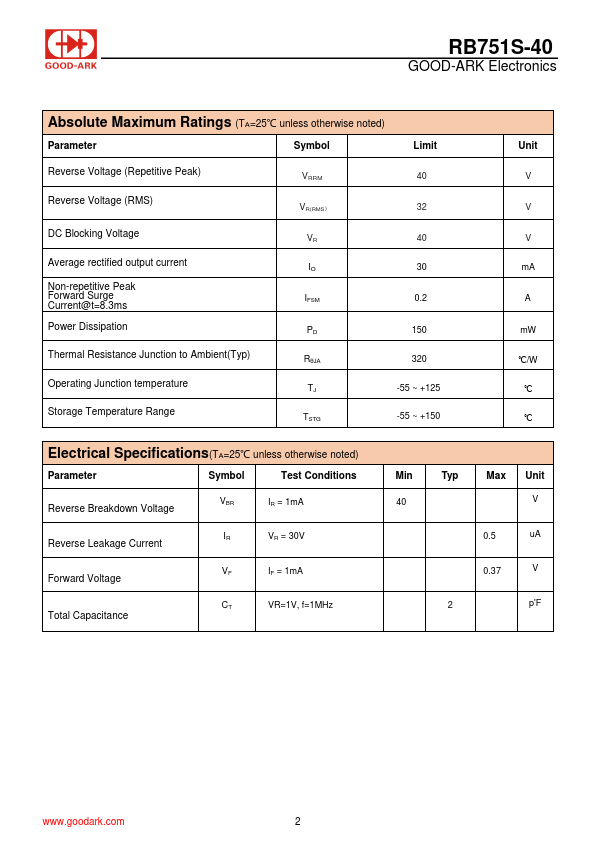

ABSOLUTE MAXIMUM RATINGS
(TA=25℃ unless otherwise noted) Parameter Symbol Limit Unit Reverse Voltage (Repetitive Peak) VRRM 40 V Reverse Voltage (RMS) VR(RMS ) 32 V DC Blocking Voltage VR Average rectified output current IO Non-repetitive Peak Forward Surge Current@t=8.3ms IFSM Power Dissipation PD Thermal Resistance Junction to Ambient(Typ) RθJA Operating Junction temperature TJ Storage Te...
