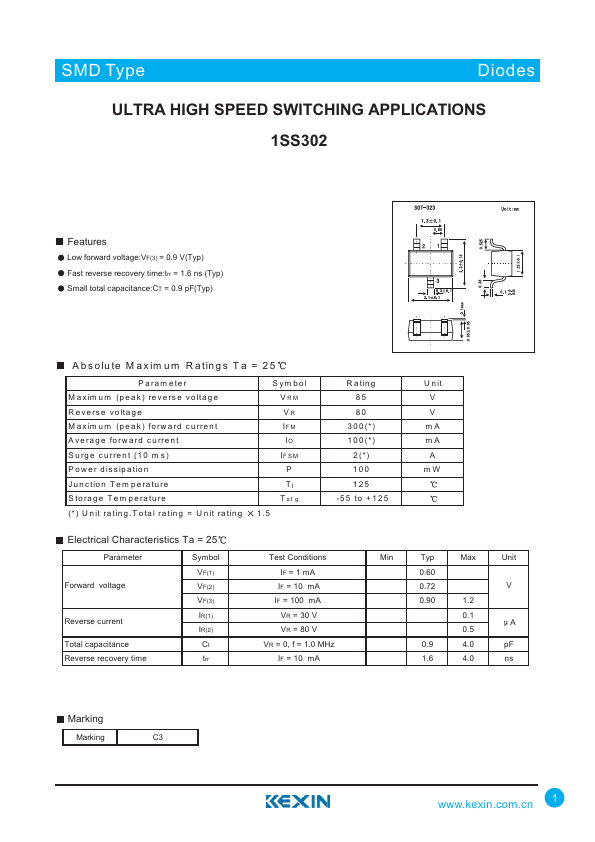

Datasheet Summary
SMD Type
Diodes
ULTRA HIGH SPEED SWITCHING APPLICATIONS 1SS302
Features
Low forward voltage:VF(3) = 0.9 V(Typ) Fast reverse recovery time:trr = 1.6 ns (Typ) Small total capacitance:CT = 0.9 pF(Typ)
A b so lu te M a xim u m R a tin g s T a = 2 5
P aram eter M axim um (peak) reverse voltage R everse voltage M axim um (peak) forw ard current A verage forward current S urge current (10 m s) P ow er dissipation Junction T em perature S torage Tem perature (- ) U nit rating.T otal rating = U nit rating
Sym bol VRM VR IFM IO IFSM P Tj Tst g
R ating 85 80
300(- ) 100(- )
2(- ) 100 125 -55 to +125
U nit V V mA mA
A mW
Electrical Characteristics Ta = 25
Parameter Forward voltage
Reverse...
