PT320AT01-1
PT320AT01-1 is TFT LCD manufactured by HKC.
DESCRIPTION

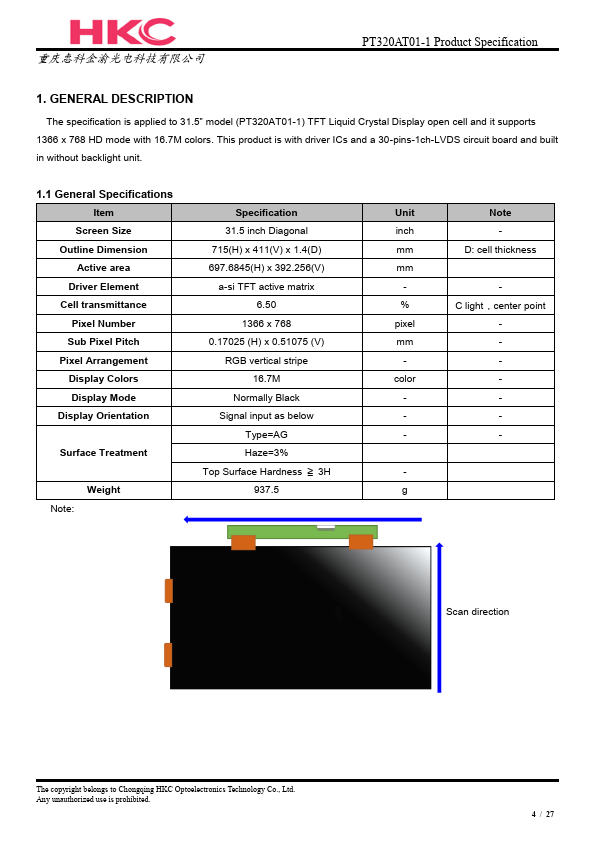

The specification is applied to 31.5” model (PT320AT01-1) TFT Liquid Crystal Display open cell and it supports 1366 x 768 HD mode with 16.7M colors. This product is with driver ICs and a 30-pins-1ch-LVDS circuit board and built in without backlight unit.
1.1 General Specifications
Item Screen Size Outline Dimension Active area Driver Element Cell transmittance Pixel Number Sub Pixel Pitch Pixel Arrangement Display Colors Display Mode Display Orientation
Surface Treatment
Weight Note:
Specification 31.5 inch Diagonal 715(H) x 411(V) x 1.4(D) 697.6845(H) x 392.256(V) a-si TFT active matrix
6.50 1366 x 768 0.17025 (H) x 0.51075 (V) RGB vertical stripe
16.7M Normally Black Signal input as below
Type=AG Haze=3% Top Surface Hardness ≧ 3H
Unit inch mm mm
% pixel mm color
- g
Note
- D: cell thickness
C light，center point
- Scan direction
The copyright belongs to Chongqing HKC Optoelectronics Technology Co., Ltd. Any unauthorized use is prohibited.
4 / 27
重庆惠科金渝光电科技有限公司
PT320AT01-1 Product Specification
2. ABSOLUTE MAXIMUM RATINGS

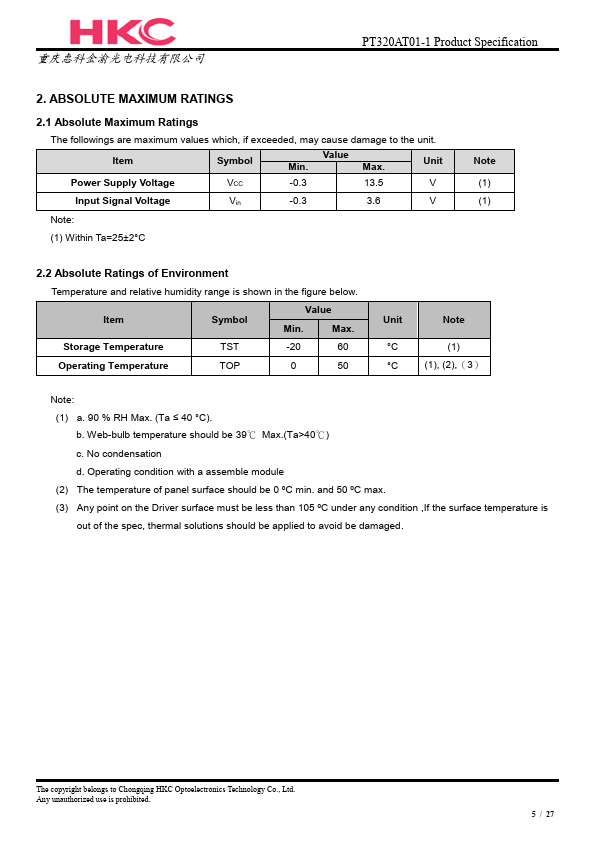

2.1 Absolute Maximum Ratings
The followings are maximum values which, if exceeded, may cause damage to the unit.
Item
Symbol
Value
Min.
Max.
Unit
Power Supply Voltage
-0.3
Input Signal Voltage
Vin
-0.3
Note:...
