HSD084ISN1-A Description

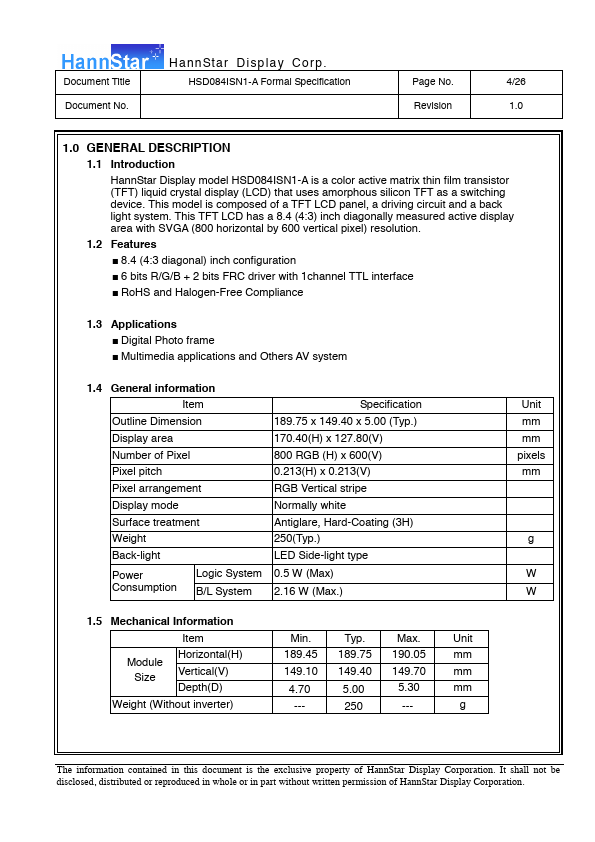

1.1 Introduction HannStar Display model HSD084ISN1-A is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is posed of a TFT LCD panel, a driving circuit and a back light system. This TFT LCD has a 8.4 (4:3) inch diagonally measured active display area with SVGA (800 horizontal by 600 vertical pixel) resolution.
HSD084ISN1-A Key Features
- 8.4 (4:3 diagonal) inch configuration
- 6 bits R/G/B + 2 bits FRC driver with 1channel TTL interface
- RoHS and Halogen-Free pliance
