HSD088IPW1-A Description

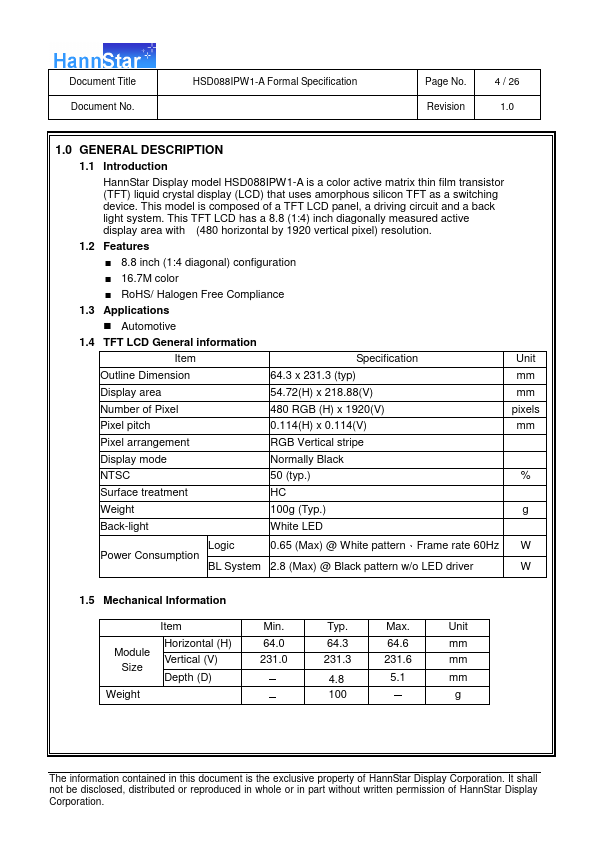

1.1 Introduction HannStar Display model HSD088IPW1-A is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is posed of a TFT LCD panel, a driving circuit and a back light system. This TFT LCD has a 8.8 (1:4) inch diagonally measured active display area with (480 horizontal by 1920 vertical pixel) resolution.
HSD088IPW1-A Key Features
- 8.8 inch (1:4 diagonal) configuration
- 16.7M color
- RoHS/ Halogen Free pliance
