HSD140PHW1-A - TFT LCD Panel

Download the HSD140PHW1-A datasheet PDF. This datasheet also covers the HSD140PHW1 variant, as both devices belong to the same tft lcd panel family and are provided as variant models within a single manufacturer datasheet.

General Description

A Formal Product Specification was first issued.

The information contained in this document is the exclusive property of HannStar Display Corporation.

Key Features

  • 14 (16:9 diagonal) inch configuration.
  • One channel LVDS interface.
  • 262K color by 6 bit R. G. B signal input.
  • RoHS Compliance.

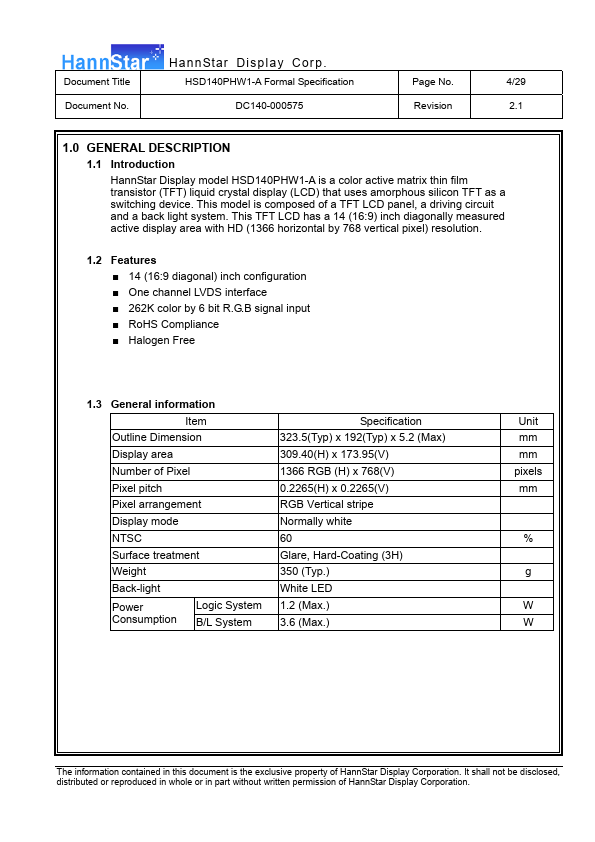

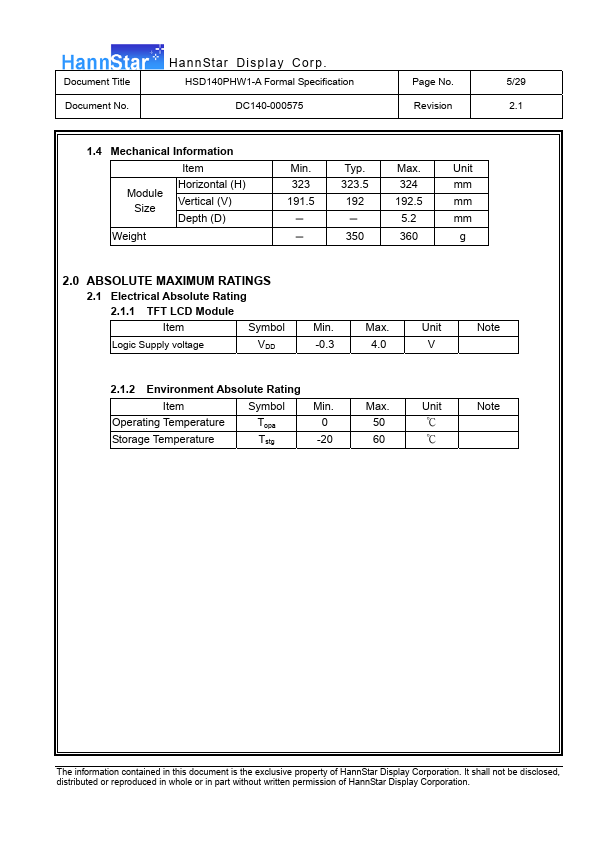

  • Halogen Free 1.3 General information Item Outline Dimension Display area Number of Pixel Pixel pitch Pixel arrangement Display mode NTSC Surface treatment Weight Back-light Power Logic System Consumption B/L System Specification 323.5(Typ) x 192(Typ) x 5.2 (Max)www. DataSheet. net/ 309.40(H) x 173.95(V) 1366 RGB (H) x 768(V) 0.2265(H).
