HSD140PHW1-A02 Datasheet Tft Lcd Panel

Manufacturer: HannStar

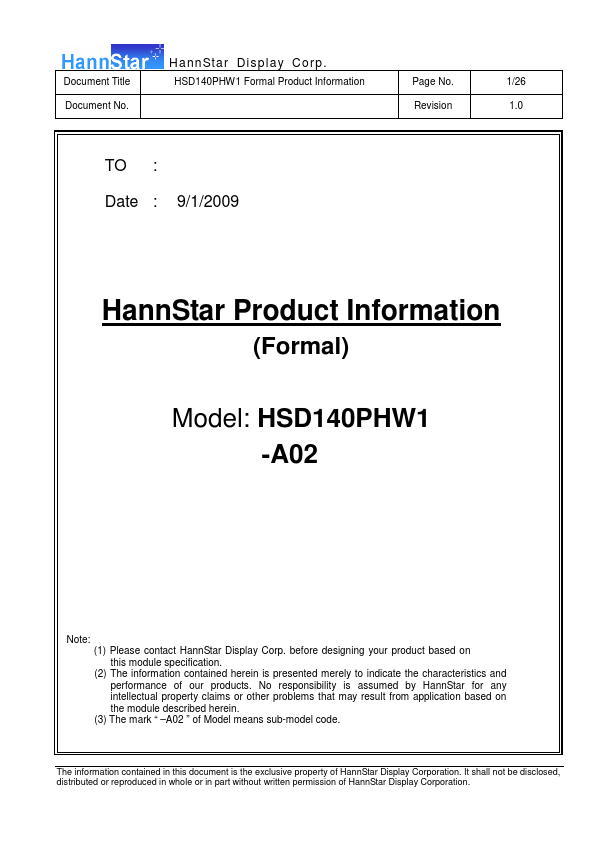

Overview: Global LCD Panel Exchange Center .panelook. Document Title Document No. HannStar Display Corp. HSD140PHW1 Formal Product Information Page No. Revision TO : Date : 9/1/2009 1/26 1.0 HannStar Product Information (Formal) Model: HSD140PHW1 -A02 Note: (1) Please contact HannStar Display Corp. before designing your product based on this module specification. (2) The information contained herein is presented merely to indicate the characteristics and performance of our products. No responsibility is assumed by HannStar for any intellectual property claims or other problems that may result from application based on the module described herein. (3) The mark “ –A02 ” of Model means sub-model code. The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not be disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display Corporation. One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! .panelook. Global LCD Panel Exchange Center .panelook. Document Title Document No. HannStar Display Corp. HSD140PHW1 Formal Product Information Page No. Revision Rev. Date 1.

Datasheet Details

Part number HSD140PHW1-A02
Manufacturer HannStar
File Size 733.74 KB
Description TFT LCD Panel
Datasheet HSD140PHW1-A02-HannStar.pdf

General Description

of change A02 Formal Product Information was first issued.

2/26 1.0 The information contained in this document is the exclusive property of HannStar Display Corporation.

It shall not be disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.

Key Features

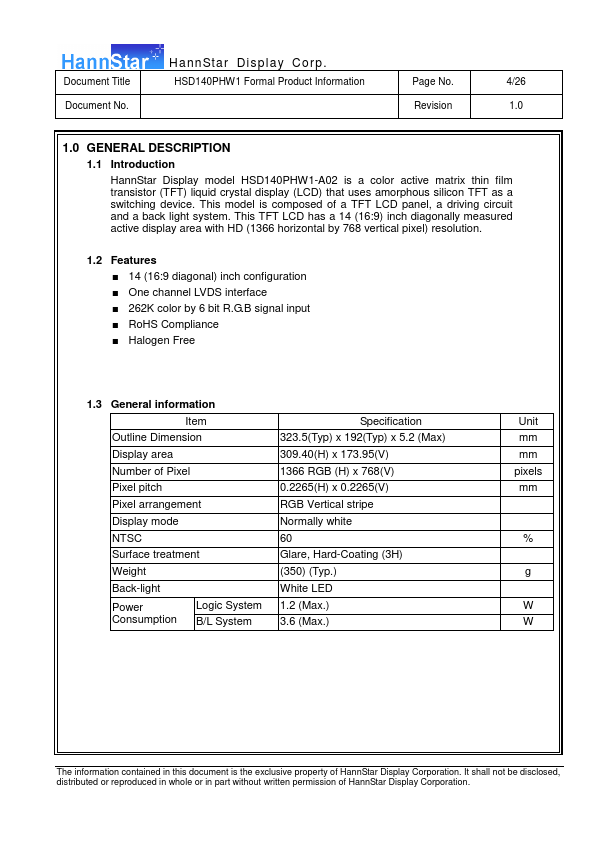

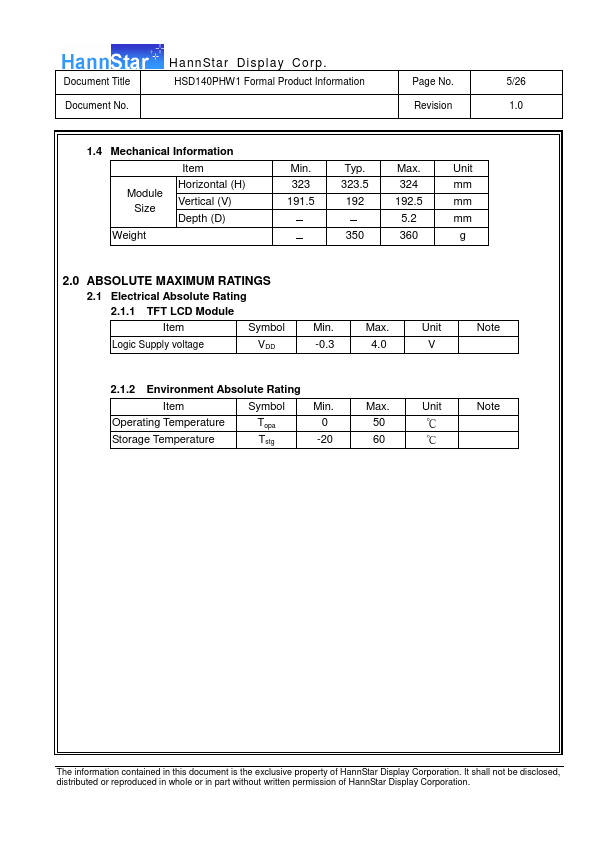

  • Ŷ 14 (16:9 diagonal) inch configuration Ŷ One channel LVDS interface Ŷ 262K color by 6 bit R. G. B signal input Ŷ RoHS Compliance Ŷ Halogen Free 1.3 General information Item Outline Dimension Display area Number of Pixel Pixel pitch Pixel arrangement Display mode NTSC Surface treatment Weight Back-light Power Logic System Consumption B/L System Specification 323.5(Typ) x 192(Typ) x 5.2 (Max) 309.40(H) x 173.95(V) 1366 RGB (H) x 768(V) 0.2265(H) x 0.2265(V) RGB Vertical stripe Norma.
