Datasheet Details
| Part number | HT7050A-1 |
|---|---|
| Manufacturer | Holtek Microelectronics |
| File Size | 380.62 KB |
| Description | (HT70xxA-1) Voltage Detector |
| Datasheet | HT7050A-1 HT7044A-1 Datasheet (PDF) |
|
|
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | HT7050A-1 |
|---|---|
| Manufacturer | Holtek Microelectronics |
| File Size | 380.62 KB |
| Description | (HT70xxA-1) Voltage Detector |
| Datasheet | HT7050A-1 HT7044A-1 Datasheet (PDF) |
|
|
|

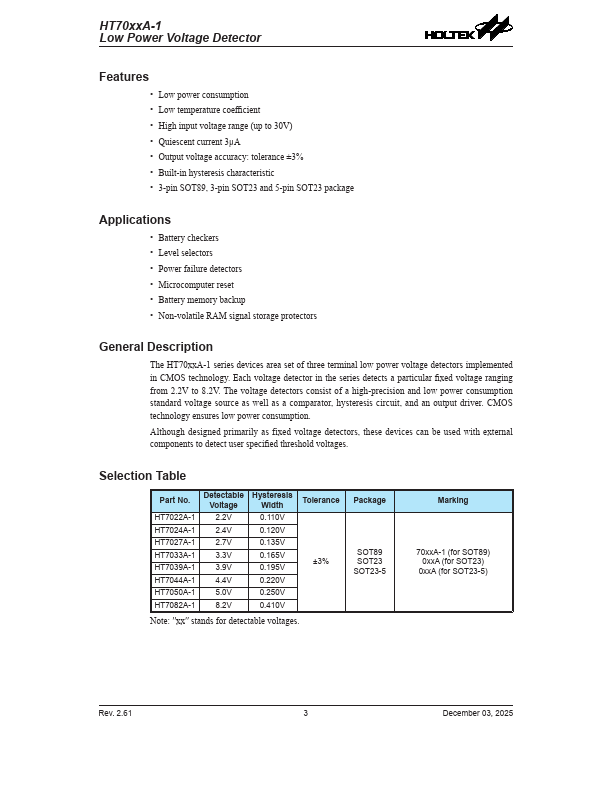

The HT70xxA-1 series devices area set of three terminal low power voltage detectors implemented in CMOS technology.
Each voltage detector in the series detects a particular fixed voltage ranging from 2.2V to 8.2V.

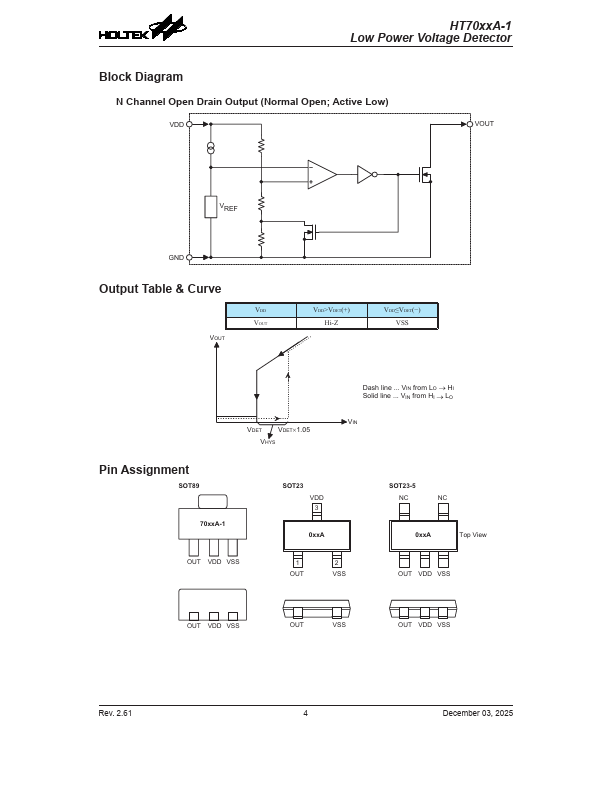

The voltage detectors consist of a high-precision and low power consumption standard voltage source as well as a comparator, hysteresis circuit, and an output driver.
| Part Number | Description |
|---|---|
| HT7024A-1 | (HT70xxA-1) Voltage Detector |
| HT7033A-1 | (HT70xxA-1) Voltage Detector |
| HT7039A-1 | (HT70xxA-1) Voltage Detector |
| HT7044A-1 | (HT70xxA-1) Voltage Detector |
| HT7470 | Fast Battery Charger |
