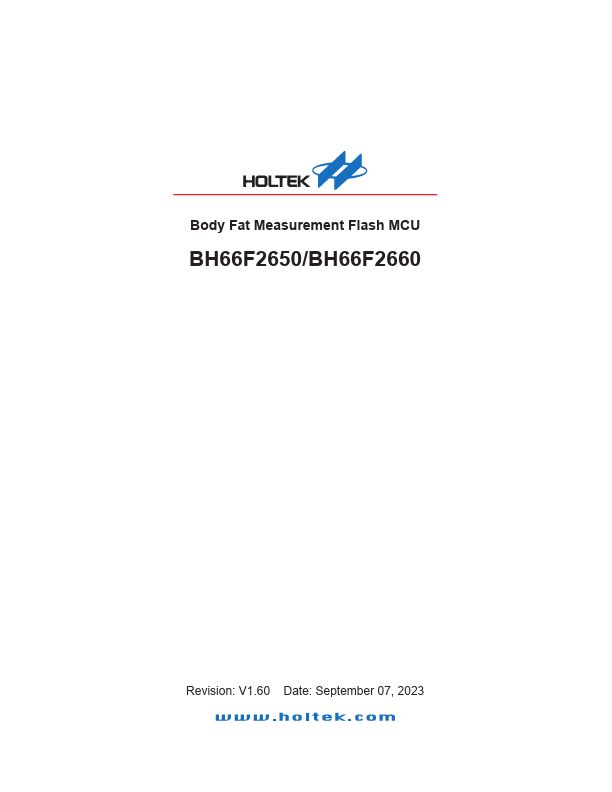

Datasheet Summary
Body Fat Measurement Flash MCU
BH66F2650/BH66F2660
Revision: V1.60 Date: September 07, 2023
BH66F2650/BH66F2660 Body Fat Measurement Flash MCU
Note that the BH66F2650 device, although mentioned in this datasheet, has already been phased out and are presently no longer available.

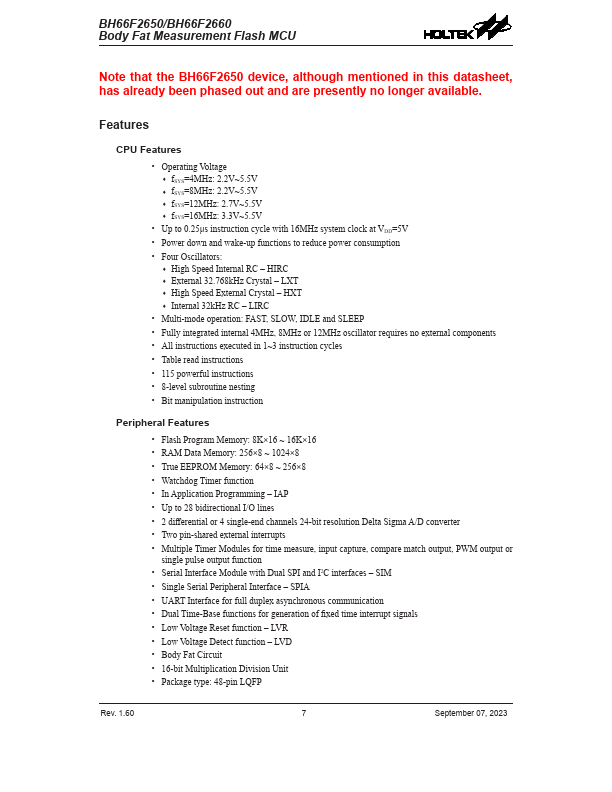

Features
CPU Features
- Operating Voltage
- fSYS=4MHz: 2.2V~5.5V
- fSYS=8MHz: 2.2V~5.5V
- fSYS=12MHz: 2.7V~5.5V
- fSYS=16MHz: 3.3V~5.5V
- Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Four Oscillators:
- High Speed Internal RC
- HIRC
- External 32.768kHz Crystal
- LXT
- High Speed External Crystal
- HXT
- Internal 32kHz RC
- LIRC
-...
