BS82C16A-3
Overview

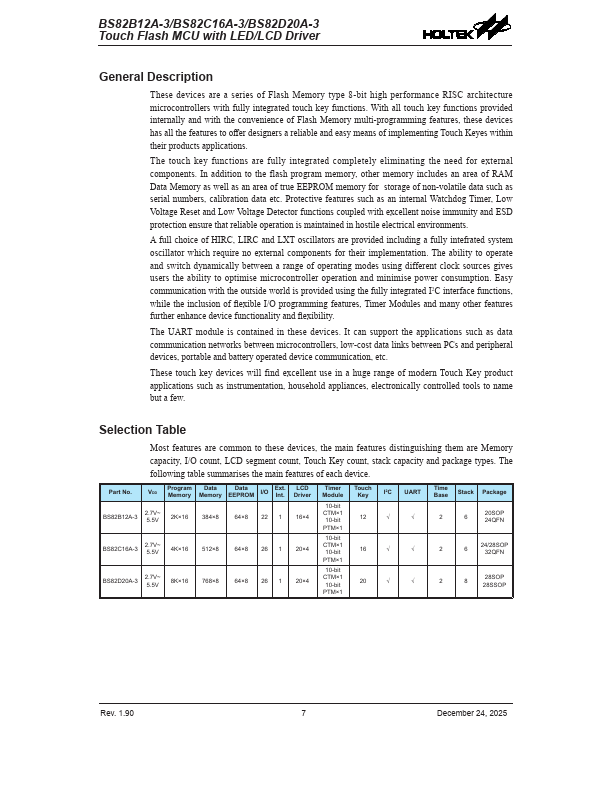

These devices are a series of Flash Memory type 8-bit hig.

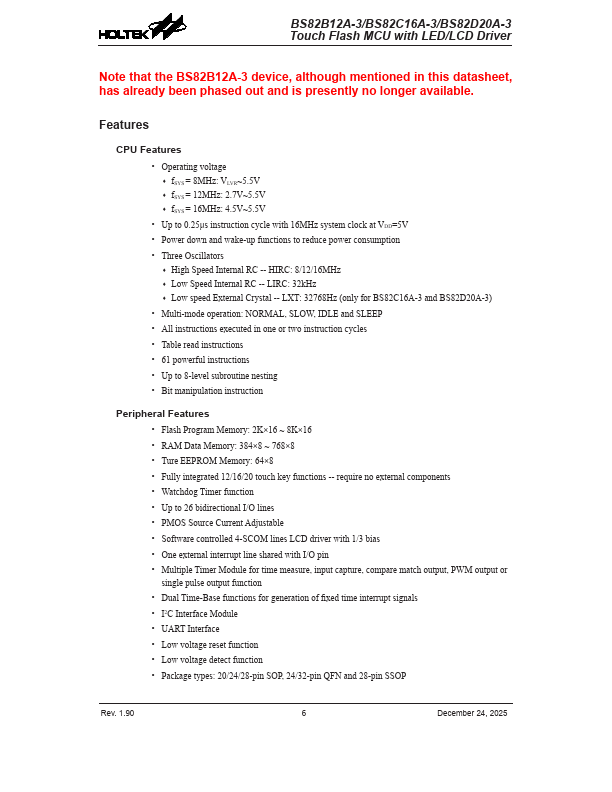

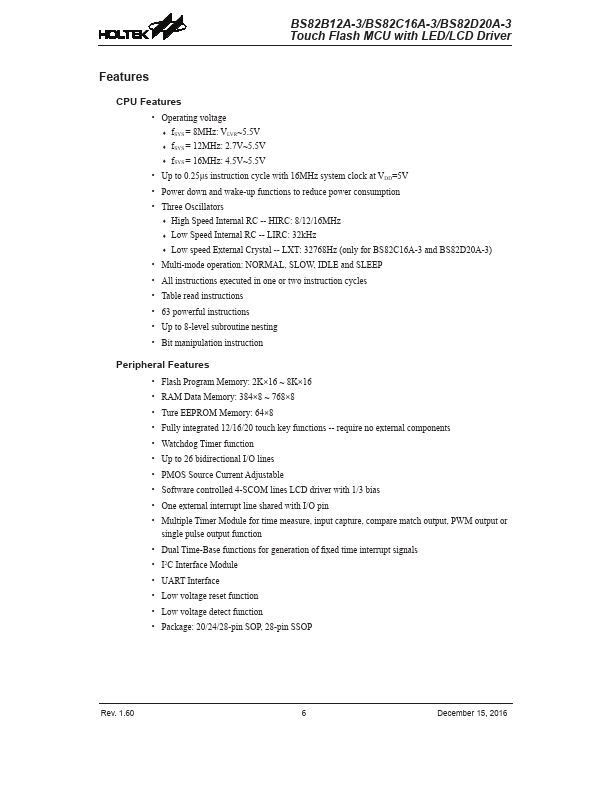

- Operating voltage
- fSYS = 8MHz: VLVR~5.5V
- fSYS = 12MHz: 2.7V~5.5V
- fSYS = 16MHz: 4.5V~5.5V
- Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Three Oscillators
- High Speed Internal RC -- HIRC: 8/12/16MHz
- Low Speed Internal RC -- LIRC: 32kHz
- Low speed External Crystal -- LXT: 32768Hz (only for BS82C16A-3 and BS82D20A-3)
