Datasheet Summary
4-Key Touch Flash MCU
Revision: V1.12 Date: February 21, 2025
BS83B04C 4-Key Touch Flash MCU

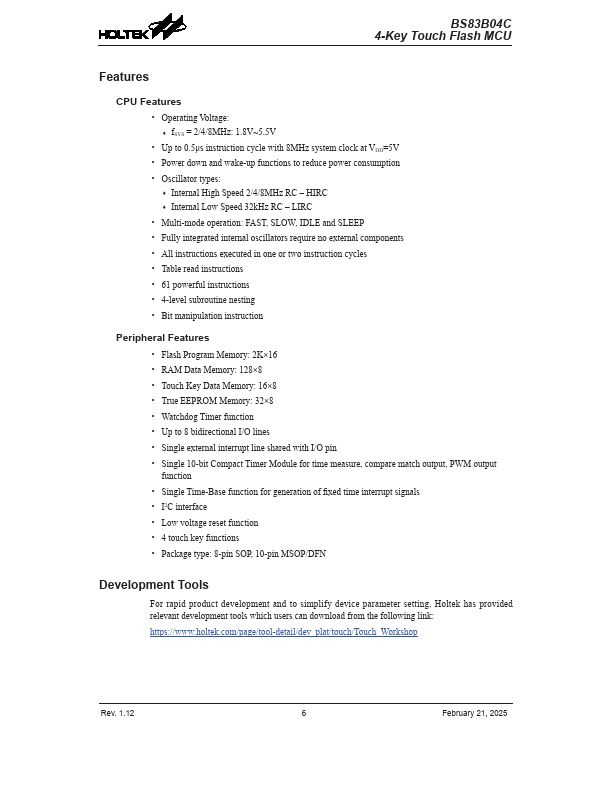

Features
CPU Features
- Operating Voltage:
- fSYS = 2/4/8MHz: 1.8V~5.5V
- Up to 0.5μs instruction cycle with 8MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator types:
- Internal High Speed 2/4/8MHz RC
- HIRC
- Internal Low Speed 32kHz RC
- LIRC
- Multi-mode operation: FAST, SLOW, IDLE and SLEEP
- Fully integrated internal oscillators require no external ponents
- All instructions executed in one or two instruction cycles
- Table read instructions
- 61 powerful instructions
- 4-level subroutine nesting
- Bit manipulation instruction
Per...
