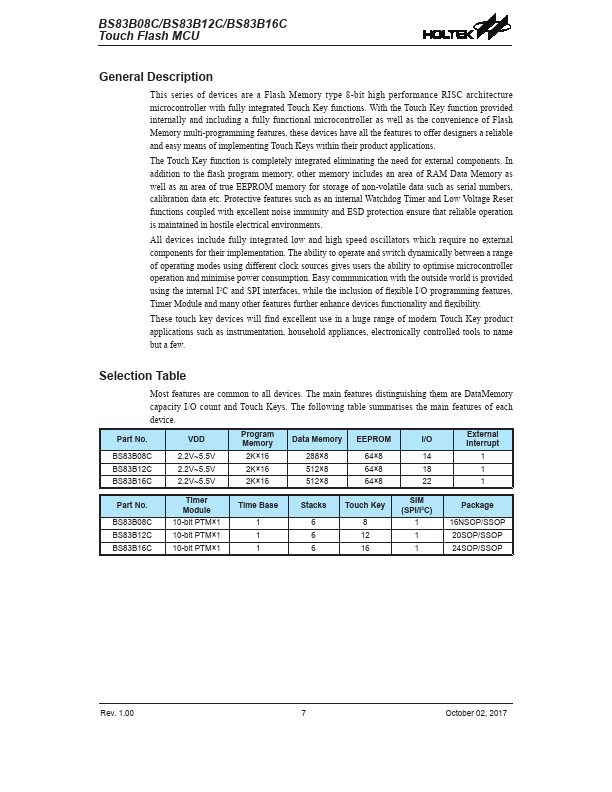

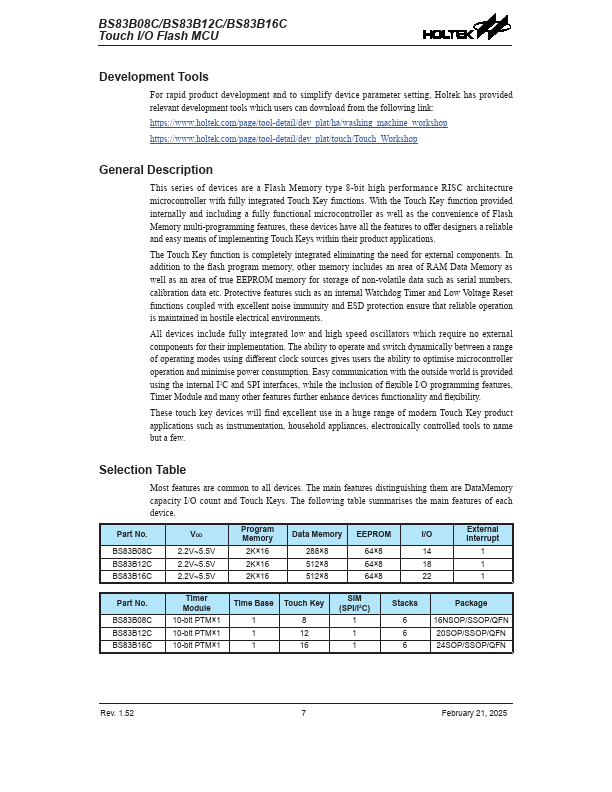

BS83B08C Description
This series of devices are a Flash Memory type 8-bit high performance RISC architecture microcontroller with fully integrated Touch Key functions. With the Touch Key function provided internally and including a fully functional microcontroller as well as the convenience of Flash Memory multi-programming.

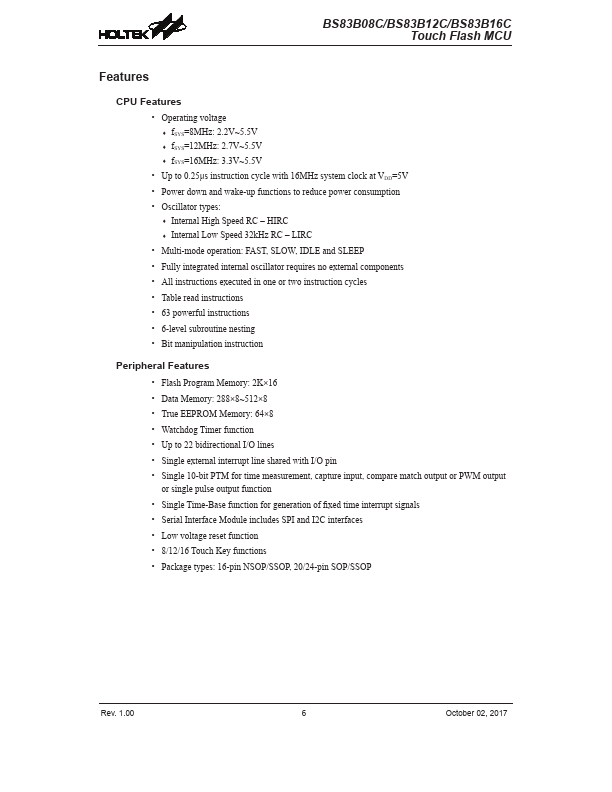

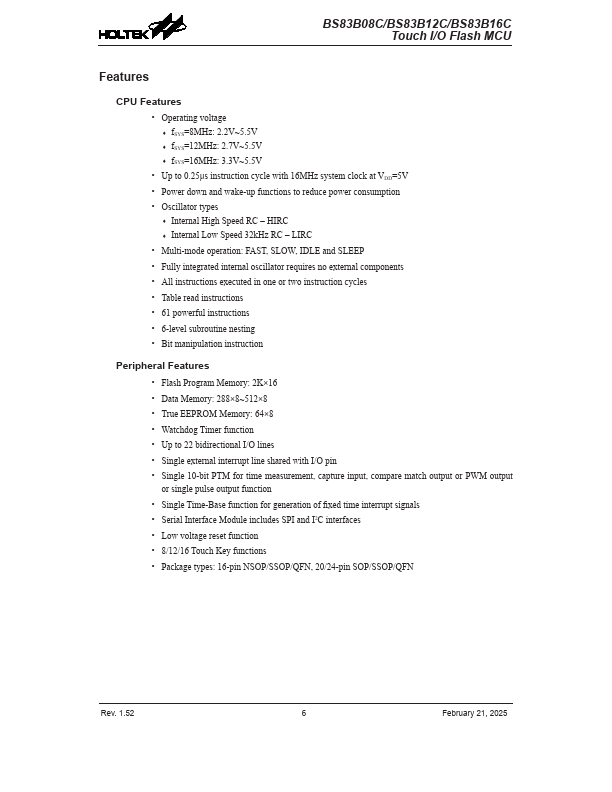

BS83B08C Key Features
- Operating voltage -- fSYS=8MHz: 2.2V~5.5V -- fSYS=12MHz: 2.7V~5.5V -- fSYS=16MHz: 3.3V~5.5V
- Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator types: -- Internal High Speed RC
- HIRC -- Internal Low Speed 32kHz RC
- Multi-mode operation: FAST, SLOW, IDLE and SLEEP
- Fully integrated internal oscillator requires no external ponents
- All instructions executed in one or two instruction cycles
- Table read instructions
- 63 powerful instructions
