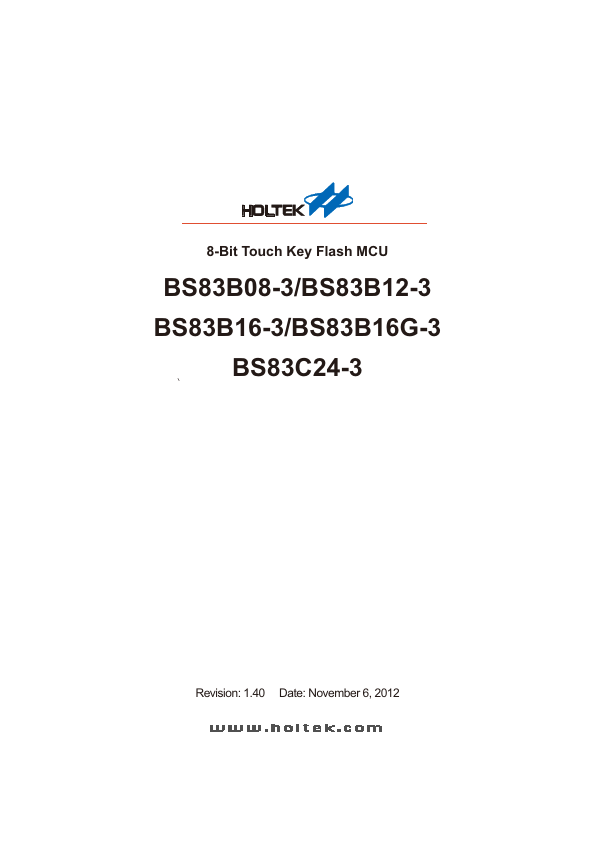

Datasheet Summary
8-Bit Touch Key Flash MCU
BS83B08-3/BS83B12-3 BS83B16-3/BS83B16G-3
BS83C24-3
Revision: 1.40 Date: November 6, 2012
BS83B08-3/B12-3/B16-3/B16G-3/C24-3 8-Bit Touch Key Flash MCU

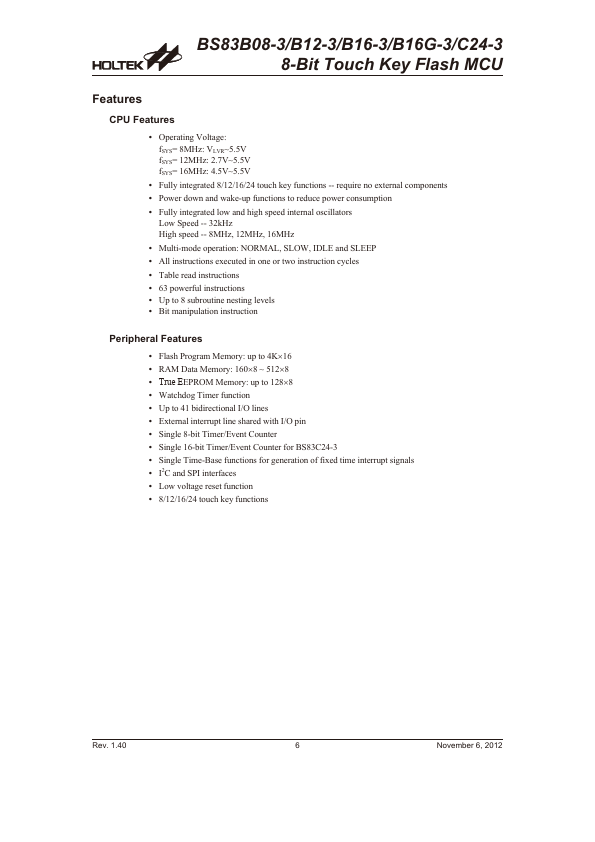

Features
CPU Features
- Operating Voltage: fSYS= 8MHz: VLVR~5.5V fSYS= 12MHz: 2.7V~5.5V fSYS= 16MHz: 4.5V~5.5V
- Fully integrated 8/12/16/24 touch key functions -- require no external ponents
- Power down and wake-up functions to reduce power consumption
- Fully integrated low and high speed internal oscillators
Low Speed -- 32kHz High speed -- 8MHz, 12MHz, 16MHz
- Multi-mode operation: NORMAL, SLOW, IDLE and SLEEP
- All instructions executed in one or two instruction cycles
- Table read instructions
- 63...
