BS84B06A-3 Datasheet | Holtek Semiconductor

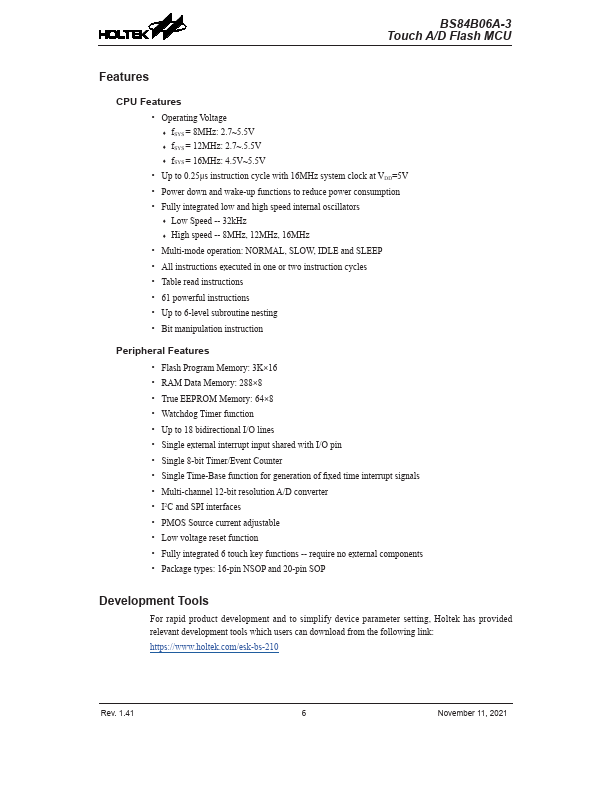

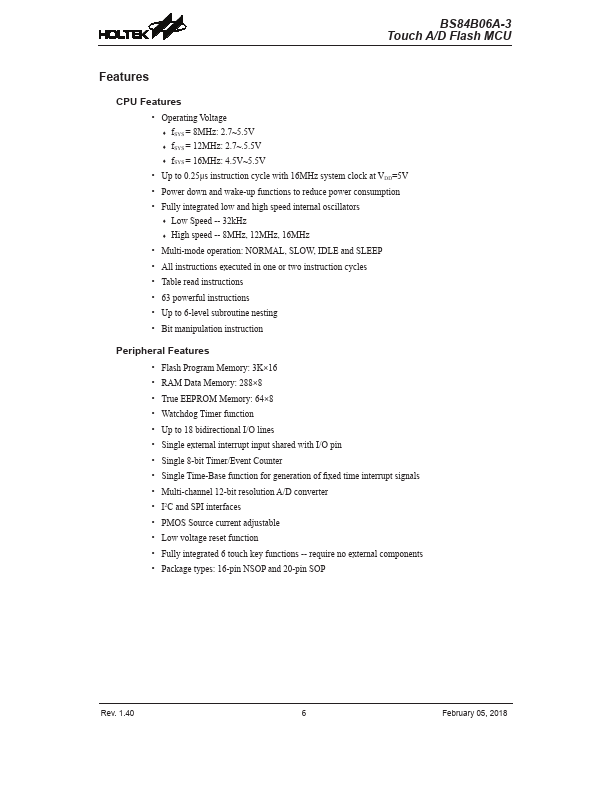

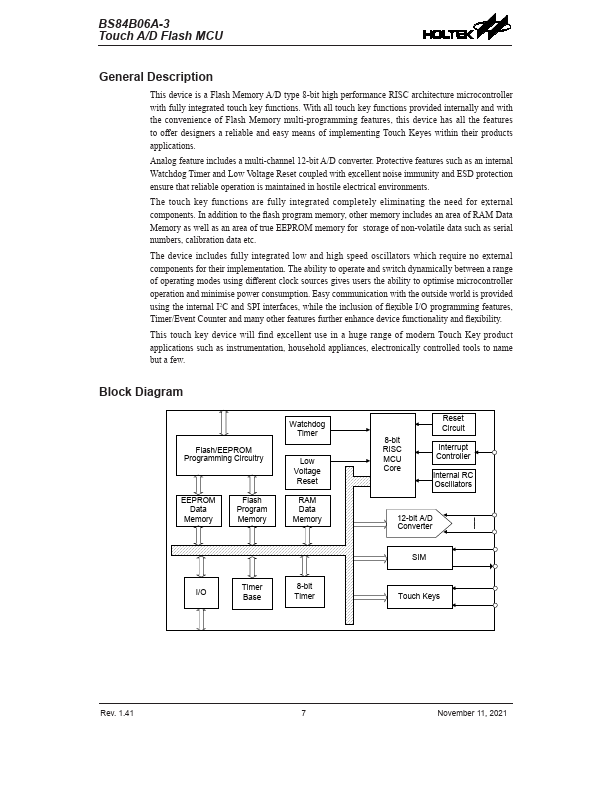

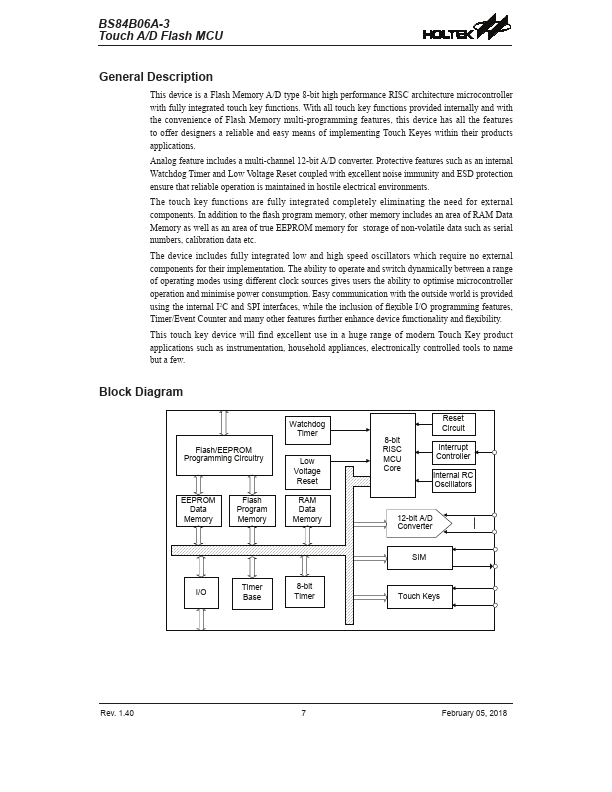

Features CPU Features - Operating Voltage - f SYS = 8MHz: 2.7~5.5V - f SYS = 12MHz: 2.7~.5.5V - f SYS = 16MHz: 4.5V~5.5V - Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V - Power down and wake-up functions to reduce power consumption - Fully integrated low and high speed internal oscillators - Low Speed -- 32k Hz - High speed -- 8MHz, 12MHz, 16MHz - Multi-mode operation: NORMAL, SLOW, IDLE and SLEEP - All instructions executed in one or two instruction cycles - Table read instructions - 61 powerful instructions - Up to 6-level subroutine nesting - Bit manipulation instruction Peripheral Features - Flash Program Memory: 3K×16 - RAM Data Memory: 288×8 - True EEPROM Memory: 64×8 - Watchdog Timer function - Up to 18 bidirectional I/O lines - Single external interrupt input shared with I/O pin - Single 8-bit Timer/Event Counter - Single Time-Base function for generation of fixed time interrupt signals - Multi-channel 12-bit resolution A/D converter - I2C and SPI interfaces - PMOS Source current adjustable - Low voltage reset function - Fully integrated 6 touch key functions -- require no external ponents - Package types: 16-pin NSOP and 20-pin SOP Development Tools For rapid product development and to simplify device parameter setting, Holtek has provided relevant development tools which users can download from the following link: https://.holtek./esk-bs-210 Rev. 1.41 November 11, 2021 BS84B06A-3 Touch A/D Flash MCU General Description This device is a Flash Memory A/D type 8-bit high performance RISC architecture microcontroller with fully integrated touch key functions. With all touch key functions provided internally and with the convenience of Flash Memory multi-programming...
