HT45F0060
HT45F0060 is RGB Dimming LED Flash MCU manufactured by Holtek Semiconductor.
RGB Dimming LED Flash MCU
Revision: V1.30 Date: May 22, 2023
HT45F0060 RGB Dimming LED Flash MCU

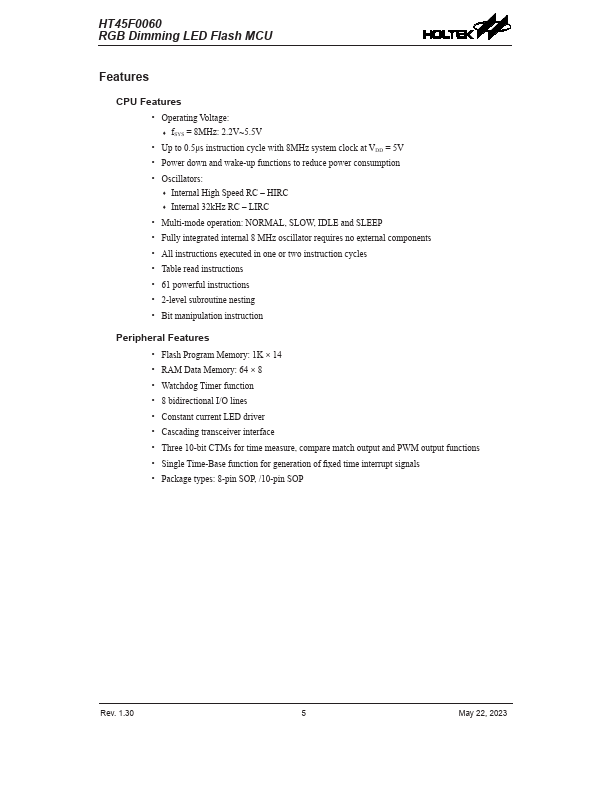

Features
CPU Features
- Operating Voltage:
- f SYS = 8MHz: 2.2V~5.5V
- Up to 0.5μs instruction cycle with 8MHz system clock at VDD = 5V
- Power down and wake-up functions to reduce power consumption
- Oscillators:
- Internal High Speed RC
- HIRC
- Internal 32k Hz RC
- LIRC
- Multi-mode operation: NORMAL, SLOW, IDLE and SLEEP
- Fully integrated internal 8 MHz oscillator requires no external ponents
- All instructions executed in one or two instruction cycles
- Table read instructions
- 61 powerful instructions
- 2-level subroutine nesting
- Bit manipulation instruction
Peripheral Features
- Flash Program Memory: 1K × 14
- RAM Data Memory: 64 × 8
- Watchdog Timer function
- 8 bidirectional I/O lines
- Constant current LED driver
- Cascading transceiver interface
- Three 10-bit CTMs for time measure, pare match output and PWM output functions
- Single Time-Base function for generation of fixed time interrupt...
