HT67F50
HT67F50 is A/D Flash MCU manufactured by Holtek Semiconductor.
- Part of the HT67F30 comparator family.
- Part of the HT67F30 comparator family.

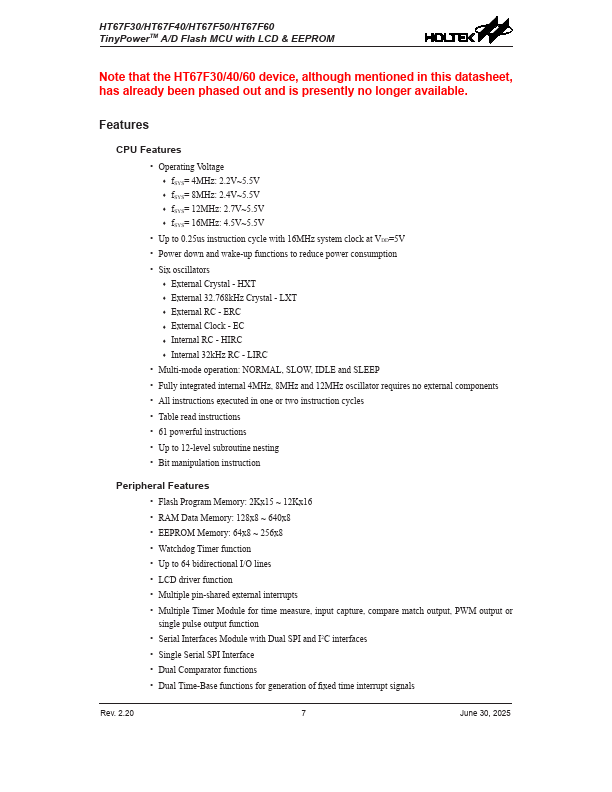

Features
CPU Features
- Operating Voltage
- f SYS= 4MHz: 2.2V~5.5V
- f SYS= 8MHz: 2.4V~5.5V
- f SYS= 12MHz: 2.7V~5.5V
- f SYS= 16MHz: 4.5V~5.5V
- Up to 0.25us instruction cycle with 16MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Six oscillators
- External Crystal
- HXT
- External 32.768k Hz Crystal
- LXT
- External RC
- ERC
- External Clock
- EC
- Internal RC
- HIRC
- Internal 32k Hz RC
- LIRC
- Multi-mode operation: NORMAL, SLOW, IDLE and SLEEP
- Fully integrated internal 4MHz, 8MHz and 12MHz oscillator requires no external ponents
- All instructions executed in one or two instruction cycles
- Table read instructions
- 61 powerful instructions
- Up to 12-level subroutine nesting
- Bit manipulation instruction
Peripheral Features
- Flash Program Memory: 2Kx15 ~ 12Kx16
- RAM Data Memory: 128x8 ~ 640x8
- EEPROM Memory: 64x8 ~ 256x8
- Watchdog Timer function
- Up to 64 bidirectional I/O lines
- LCD driver function
- Multiple pin-shared external interrupts
- Multiple Timer Module for time measure, input capture, pare match output, PWM output or single pulse output function
- Serial Interfaces Module with Dual SPI and I2C interfaces
- Single Serial SPI...
